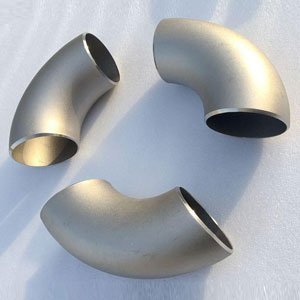

1D / 1.5D / 3D / 5D Elbow Supplier

Manufacturer of 1D Elbow, 1.5D Elbow , ASME B16.9 3D Elbow, 5D Elbow in India.

Metalfed Engineering is leading supplier and exporter of 1.5D Elbow. We supply these Long Radius 1.5D Elbow and 1D Radius Elbow in various sizes, shapes, and dimensions. We at Metalfed Engineering, would like to take the opportunity to introduce as a leading 1D Elbow Suppliers in India. We have huge stock of 1.5D Elbow, 3D Elbow and 5D Elbow in various range of materials and sizes for the oil, gas, petrochemical and allied industries. Pipes with Long Radius 1.5D Elbow can be assembled and disassembled easily. We consider our client’s needs and focus on offering them efficient and accurate Elbow Radius 1.5D at a best price. Contact us to get 1D Elbow Price in India.

We exporting ANSI B16.9 3D Elbow in India, 5D 45 Degree Elbow, 5D 90 Degree Elbow, 5D Radius Elbow in various shapes & size worldwide. The radius in 5D bends elbow is five times the nominal diameter. At the time of manufacturing of 5D Elbow with a 10-inch diameter pipe, the radius of the centerline of the bend would be 50 inches. ASME B16.9 5D Elbow for the specified radius is both art and science. And with today’s advanced software, modern machines and pipe bending is highly precise. With the right tooling and material, machine, lubrication, achieving the perfect bend is a sure thing.

These 1.5D Elbows manufactured under the supervision of skilled professionals that having excellent knowledge of development. Owing to our strong quality commitments we are offering high quality of 1D Elbow Pipe Fittings that offer a commendable performance in sugar, chemical industries,refineries, and food processing industries . There are excellent resistance in these 1.5D Radius Elbow Pipe Fittings towards chemicals, corrosion, and harsh weather conditions.

Get 1.5D Radius Elbow, R/D 1.5 Elbow, 5D Elbow ANSI Dimensions, 1D Elbow Dimensions, 3D LR Elbow, Pipe Elbow 5D Long Radius Elbow 1.5D, Pipe Elbow 1.5D, 1D Elbow Price in India.

Table of Content

1D / 1.5D / 3D / 5D Elbow Specification
Elbow LR 1D Dimensions
Long Radius Elbow Dimensions 1.5D
3D Elbow Dimensions
Radius 5D Elbow Dimensions
1D / 1.5D Elbow Weight Chart

3D Elbow Weight Chart
5D Elbow Weight Chart
Dimensional Tolerances of 1D / 1.5D / 3D / 5D Elbow
1D / 1.5D / 3D / 5D Elbow Types
Elbow LR 1.5D Applications
1D / 1.5D / 3D / 5D Elbow Exports to

We are offering Elbow LR 1.5D that is anti-corrosive, highly reliable, durable, and robust with perfect dimensional accuracy. 3D Pipe Elbow in accordance with the national and international quality standards and offerat best prices to our valuable clients.During the testing process, various qualitative parameters of ANSI B16.9 1.5D Elbows are verified by our quality controllers. Before the packaging and delivery of this Elbow LR 1D, We conduct so many destructive and non-destructive quality check tests. We have largest stock of 1D Elbow for emergency requirements. We are using conventional shipping and packaging methods to offer damage-free delivery of 5D Elbow before the delivery deadline provided by our clients.

Reputed Stockholder of EN 10253-2 Elbow 3D, R=5D Elbow, Long Radius Elbow 3D, 1.5D Pipe Elbow Supplier in Mumbai, Elbow LR 1.5D, R=1.5D Elbow, ASME B16.28 1D Elbow.

1D / 1.5D / 3D / 5D Elbow Specifications

Dimension

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size

1/2″NB TO 48″NB IN.

Form

Pipe Fitting 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow

Thickness

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type

Welded / ERW / Welded / Fabricated

GET UPDATED PRICE AND COMPLETE QUOTATION WITHIN AN HOUR sales@metalfed.com

ASME B16.9 1D Elbow Dimensions, 1.5D Elbow Dimensions

Size			Wall Thickness	Radius	Approx. Weight (kg)
DN		OD	t	A	e
inch	mm	mm	mm	mm	mm	45°	90°
Seamless
1	25	30	1.5	30	12	0.03	0.05
1¼	32	38	1.5	32.5	14	0.03	0.08
1½	40	44.5	1.5	40	17	0.06	0.14
2	50	57	1.5	52.5	22	0.10	0.20
2½	65	76	2	70	29	0.23	0.46
3	80	89	2	82.5	34	0.32	0.64
4	100	108	2.5	100	41	0.58	1.16
5	125	133	2.5	125	52	0.90	1.80
6	150	159	2.5	150	62	1.30	2.60
7	175	194	3	180	75	1.90	3.80
8	200	219	3	210	87	3.00	6.00
10	250	267	3	255	106	4.44	8.88
12	300	324	4	305	126	8.55	17.10
14	350	368	4	352.5	146	11.30	22.60
16	400	419	4	400	166	16.40	32.80
18	450	457	4.5	457	189	20.45	40.90
20	500	508	5	508	210	28.10	56.20
24	600	610	5	610	253	40.50	81.00
28	700	711	6	711	295	66.00	132.00
32	800	813	6	813	337	86.50	173.00
36	900	914	8	914	379	145.50	291.00

Long Radius 1.5D Elbow Dimensions

Inside	Wall	Centreline	Weight
Diameter	Thickness	Radius	Per Piece
‘A’ mm	‘B’ mm	‘C’ mm	kilos
15	1.50	30	0.03
20	1.50	35	0.04
25	1.50	32.5	0.06
32	1.50	45	0.11
40	1.50	60	0.20
50	2.00	73	0.31
65	2.00	95	0.52
80	2.00	123	0.77
100	2.00	150	1.20
100	3.00	150	1.79
125	2.00	188	1.88
150	2.00	225	2.69
150	3.00	225	4.09

ASME B16.9 3D Bend Elbow Dimensions, ANSI B16.9 3D Elbow Dimensions

DN	D	T	H	F	C	B
15	21.3	2.0	12	29	56	38
20	26.9	2.3	12	29	57	43
25	33.7	2.6	16	38	76	56
	38.0	2.6	19	45	90	64
32	42.4	2.6	20	48	95	70
	44.5	2.6	22	51	102	73
40	48.3	2.6	24	57	114	83
	54.0	2.6	28	68.5	137	95
	57.0	2.9	29	72	144	100
50	60.3	2.9	35	76	152	106
	70.0	2.9	38	92	184	127
65	76.1	2.9	44	95	191	132
80	88.9	3.2	47	114	229	159
	101.6	3.6	55	133	267	184
	108.0	3.6	58	142.5	285	196
100	114.3	3.6	63	152	305	210
	133.0	4.0	75	181	362	247
125	139.7	4.0	79	190	381	262
	159.0	4.5	90	216	432	295
150	168.3	4.5	95	229	457	313
175	193.7	5.6	112	270	540	367
200	219.1	6.3	127	305	610	414
	244.5	6.3	141	340	680	462
250	273.0	6.3	159	381	762	518
300	323.9	7.1	190	457	914	619
350	355.6	8.0	222	533	1067	711
400	406.4	8.8	254	610	1219	813

ASME B16.9 5D Elbow Dimensions, 5D Pipe Elbow Dimensions

DN	D	R	C	B – W – Z
15	21.3	42.5	85	53
20	26.9	57.5	115	71
25	33.7	72.5	145	89
	38	82.5	165	101
32	42.4	92.5	185	114
40	48.3	109.5	219	134
	51	122.5	245	149
	57	130	260	158
50	60.3	137.5	275	168
	70	160	320	195
65	76.1	175	350	213
80	88.9	207.5	415	252
	101.6	235	470	286
	108	253	506	306
100	114.3	270	540	327
	133	311.5	623	378
125	139.7	330	660	400
	159	375	750	454
150	168.3	390	780	474
200	219.1	515	1030	624
	244.5	580	1160	702
250	273	650	1300	786
300	323.9	770	1540	932
350	355.6	850	1700	1 028
400	406.4	970	1940	1 173
450	457	1 122	2 244	1 350
500	508	1 245	2 490	1 500
550	559	1 398	2 796	1 677
600	610	1 525	3 050	1 830
650	660	1 650	3 300	1 980
700	711	1 778	3 556	2 133
750	762	1 905	3 810	2 286
800	813	2 033	4 066	2 439
850	864	2 155	4 310	2 587
900	914	2 285	4 570	2 742
1 000	1 016	2 540	5 080	3 048
1 050	1 067	2 665	5 335	3 201
1 100	1 118	2 790	5 580	3 354
1 150	1 168	2 915	5 830	3 504
1 200	1 219	3 050	6 100	3 657

1D/ 1.5D Elbow Weight Chart

NPS inches	ELBOWS 1D				ELBOWS 1.5D
NPS inches	Sch. 5S	Sch. 10S	Sch. 40S	Sch. 80S	Sch. 5S	Sch. 10S	Sch. 40S	Sch. 80S
1/2	0.05	0.06	0.08	0.10	0.03	0.04	0.05	0.07
3/4	0.06	0.07	0.09	0.11	0.04	0.05	0.06	0.07
1	0.09	0.15	0.18	0.20	0.06	0.10	0.12	0.13
1 1/4	0.13	0.20	0.25	0.35	0.09	0.13	0.17	0.12
1 1/2	0.18	0.30	0.40	0.50	0.12	0.20	0.27	0.33
2	0.30	0.50	0.70	0.90	0.20	0.33	0.47	0.60
2 1/2	0.60	0.85	1.35	1.80	0.40	0.60	0.90	1.20
3	0.90	1.30	2.00	2.90	0.60	0.90	1.35	1.90
4	1.40	2.00	4.00	5.90	0.90	1.35	2.65	3.90
5	2.90	3.60	6.50	9.70	1.95	2.40	4.35	6.50
6	4.00	5.00	10.5	16.0	2.70	3.35	7.00	10.5
8	7.40	10.0	21.5	33.5	4.90	6.70	14.5	22.5
10	13.6	16.8	38.5	52.5	9.10	11.2	25.6	35.0
12	23.4	27.0	59.0	79.0	15.6	18.0	39.5	53.0
14	29.0	35.0	70.0	94.0	19.3	23.5	47.0	63.0
16	41.3	47.0	95.0	125	27.5	31.5	63.5	84.0
18	51.8	59.0	120	158	34.5	39.5	80.0	105
20	73.0	85.0	146	194	49.0	57.0	98.0	129
24	122	140	210	282	82.0	94.0	140	188
Approximate weights in kg, density 8 kg/dm3

ANSI B16.9 3D Elbow Weight

ELBOWS 90° 3D SCHEDULE STD

NPS	LBS	KG
2	3	1.36
2½	6	2.72
3	10	4.54
3½	13	5.9
4	18	8.16
5	29	13.15
6	45	20.41
8	90	40.82
10	159	72.12
12	233	105.69
14	298	135.17
16	390	176.9
18	495	224.53
20	610	276.69
22	735	333.39
24	875	396.89
26	1030	467.2
30	1370	621.42
36	1970	893.58

ELBOWS 90° 3D SCHEDULE XS

NPS	LBS	KG
2	4	1.81
2½	8	3.63
3	13	5.9
3½	18	8.16
4	25	11.34
5	43	19.5
6	70	31.75
8	140	63.5
10	218	98.88
12	310	140.61
14	400	181.44
16	520	235.87
18	660	299.37
20	810	367.41
22	980	444.52
24	1170	530.7
26	1370	621.42
30	1830	830.07
36	2630	1192.95

5D Bend Elbow Weight Chart

Size			Wall Thickness	Radius	Approx. Weight (kg)
DN		OD	s	a	e
inch	mm	mm	mm	mm	mm	45°	90°
Seamless
1	25	30	1.5	30	12	0.03	0.05
1¼	32	38	1.5	32.5	14	0.03	0.08
1½	40	44.5	1.5	40	17	0.06	0.14
2	50	57	1.5	52.5	22	0.10	0.20
2½	65	76	2	70	29	0.23	0.46
3	80	89	2	82.5	34	0.32	0.64
4	100	108	2.5	100	41	0.58	1.16
5	125	133	2.5	125	52	0.90	1.80
6	150	159	2.5	150	62	1.30	2.60
7	175	194	3	180	75	1.90	3.80
8	200	219	3	210	87	3.00	6.00
10	250	267	3	255	106	4.44	8.88
12	300	324	4	305	126	8.55	17.10
14	350	368	4	352.5	146	11.30	22.60
16	400	419	4	400	166	16.40	32.80
18	450	457	4.5	457	189	20.45	40.90
20	500	508	5	508	210	28.10	56.20
24	600	610	5	610	253	40.50	81.00
28	700	711	6	711	295	66.00	132.00
32	800	813	6	813	337	86.50	173.00
36	900	914	8	914	379	145.50	291.00

DIMENSIONAL TOLERANCES OF ASME B16.9 1D ELBOWS , LONG RADIUS 1.5D ELBOW, 3D ELBOW, 5D ELBOW

Angularity Tolerances
ND	Max off angle	Max off plane
ND	Q	P
1/2 a 4	1	2
5 a 8	2	4
10 a 12	3	5
14 a 16	3	7
18 a 24	4	10
26 a 30	5	10
32 a 42	5	13
44 a 48	5	20

ASME B 16.9 1D / 1.5D / 3D / 5D Elbow Types

1D Pipe Elbow
Elbow 90 1.5D
Elbow 1.5D
Buttweld 1D Elbow
1.5D Elbow Long Radius
3D Pipe Elbow
5D Elbow Radius
Elbow 45 5D
5D Bend Elbow
Buttweld 3D Elbow
5D Elbow Long Radius
Long Radius 3D Elbow
1.5D Elbow Fittings
ASME B16.28 3D Elbow

5D Radius Elbow
R=5D Elbow
90 Degree Elbow 5D
Long Radius 1.5D Elbow
ASME B16.28 1D Elbow
1.5D Radius Elbow
R/D 1.5D Elbow
90 Degree Elbow 1.5D
1.5D Pipe Elbow
R=1.5D Elbow
5D Elbow ANSI
5D 45 Degree Elbow
Elbow 5D ASME
5D Elbow Center

ASME B16.9 1.5D Elbow
1D Radius Elbow
EN 10253-2 Elbow 5D
Elbow 3D 5D
5D LR Elbow
6 5D Elbow
8 5D Elbow Fittings
Elbow R=1D
ASME B16.9 1.5D Elbow
1D Radius Elbow
Elbow 1D Long Radius
MSS-SP-43 1.5D Elbow
1.5D LR Elbow
1D Elbow Pipe Fittings

1D 1.5D 3D 5D Elbow

What is 1.5 D in elbow?

Category: 1D 1.5D 3D 5D Elbow

1.5 D in elbow refers to an elbow with a bending radius of 1.5 times the nominal diameter of the pipe it is being connected to. For example, a 1.5 D elbow for a 4-inch pipe would have a bending radius of 6 inches.

What is a 1 D bend?

Category: 1D 1.5D 3D 5D Elbow

A 1 D bend refers to a bend with a bending radius equal to the nominal diameter of the pipe it is being connected to. For example, a 1 D bend for a 4-inch pipe would have a bending radius of 4 inches.

What is a 5D elbow?

Category: 1D 1.5D 3D 5D Elbow

A 5D elbow refers to an elbow with a bending radius of five times the nominal diameter of the pipe it is being connected to. For example, a 5D elbow for a 4-inch pipe would have a bending radius of 20 inches.

What is a 6D elbow?

Category: 1D 1.5D 3D 5D Elbow

A 6D elbow refers to an elbow with a bending radius of six times the nominal diameter of the pipe it is being connected to. For example, a 6D elbow for a 4-inch pipe would have a bending radius of 24 inches.

What is a 90d elbow?

Category: 1D 1.5D 3D 5D Elbow

A 90d elbow refers to an elbow with a bending angle of 90 degrees. It is typically used to change the direction of flow in a piping system.

What is an 8D bend?

Category: 1D 1.5D 3D 5D Elbow

An 8D bend refers to a bend with a bending radius of eight times the nominal diameter of the pipe it is being connected to. For example, an 8D bend for a 4-inch pipe would have a bending radius of 32 inches.

What is an elbow 3D?

Category: 1D 1.5D 3D 5D Elbow

An elbow 3D refers to an elbow with a bending radius of three times the nominal diameter of the pipe it is being connected to. For example, a 3D elbow for a 4-inch pipe would have a bending radius of 12 inches.

ASME B 16.9 Elbow 1.5D, Pipe Elbow 1D- Applications & Industries

Oil & Gas Industries

Gas Processing Industries

Food Processing Industries

Petrochemical Industries

Chemical Industries

Power Generation Industries

Sugar Industries

Fertilizers Industries

We are prestigious exporter and supplier of high quality long radius 1.5d elbows, 1d elbows. We supply 1D Pipe Elbow to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications.Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, NABL approved Lab Test Report, Third Party Inspection Report, 100% Radiography Test Report, Raw Materials Certificate etc.

Ready Stock of 1D / 1.5D / 3D / 5D Elbow Pipe Fittings Export to

AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe

EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City

AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela

Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu

CONTACT

Please send us the complete details of 1D Elbow and 3D Elbow requirement.We offer Long Radius 1.5D Elbow, and 5D Radius Elbows which are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these 1.5D Pipe Elbow at our valuable customers end. Buy 1D Pipe Elbow at best price from us.

sales@metalfed.com | +91 9137898594 | Quotation Form | Reach Us
