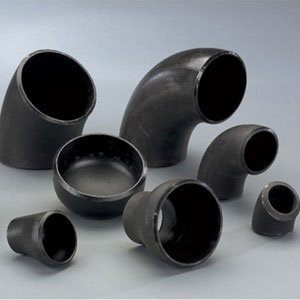

Carbon Steel ASTM A234 WPB Buttweld Fittings Manufacturers in India, ASTM A420 LTCS WPL6 & WPL3 Pipe Fittings Price, ASTM A860 Pipe Fittings Exporter
Carbon steel Pipe Fiting is made by an alloy of iron and carbon. There is no prescribed minimum content of other alloying elements for carbon steels; however, they often contain manganese. Carbon Steel ASTM A234 WPB Reducer Pipe Fittings cannot be hardened (to martensite) by heat treating, so this is usually achieved by cold working. Carbon steels are usually relatively soft and have low strength. However, Carbon Steel ASME SA 234 WPB Concentric Reducer Pipe Fittings have high ductility, which makes them excellent for machining, welding, and low cost. They have higher strengths, which is achieved through heat treatment. ASME SA 420 LTCS WPL6 Eccentric Reducer Pipe Fittings also retain their ductility, making them easily formable and machinable.
We as a Metalfed Engineering is a well-known manufacturer and exporter of CS Unequal Tee Pipe Fittings, which are very wear-resistant because they are almost always tempered. The mechanical properties of this ASTM A420 Low Temperature Carbon Steel WPL6 Equal Tee Pipe Fittings are enhanced by an authentic heat treatment followed by quenching and tempering, giving it a martensitic microstructure.
A Specialized Manufacturer of ASTM A234 WPB Pipe Elbow, ASTM A420 Gr WPL6 Tee, ASTM A420 grade WPL3 Cross, ASTM A860 WPHY 52 Bends, ASME B16.9 Carbon Steel Seamless Fittings, Carbon Steel Weld Fittings in all Dimensions and Sizes.
Heat treatment can only be performed on very thin sections; however additional alloying elements such as chromium, molybdenum and nickel can be added to enhance the steel’s ability to be heat treated and thus hardened. Carbon Steel ASTM A860 Lateral Tee Pipe Fittings have higher strength; however, this is at the expense of ductility and toughness. ASTM A234 WPB Buttweld Fittings has the highest hardness and toughness of carbon steels and the lowest ductility.
- Epoxy Coating
- Electro Polish
- Sand Blasting
- Intergranular Corrosion Test
- Tensile Test
- Hardness Test
- Good load bearing capacity
- Excellent versatility and weldability
- High tensile strength
Largest Stockists of ASTM A860 WPHY 65 Seamless Pipe Fittings, WPHY 60 Welded Pipe Fittings, WPHY 42 Equal Tee, WPHY 70 90 Degree Elbow, WPHY 46 Long / Short Radius Elbow, CS Concentric Reducer, Carbon Steel Seamless Pipe Fittings Prices.
Carbon Steel Buttweld Fittings Specifications
| Product Name: | ASTM A234 WPB Pipe Fittings | ASTM A420 WPL6 & WPL3 Pipe Fittings | ASTM A860 Pipe Fittings |
| Specifications: | ASME SA234, ASME SA420, ASME SA860 |
| size: | Welded Butt Weld Fittings:1/2″ – 48″ Seamless Butt Weld Fittings: 1/2″ – 10″ in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Dimensions: | ASME/ANSI B16.9, MSS-SP-43, ASME B16.28, BS1560, BS4504, BS4504, BS10 |
| Types: | Seamless / Welded / Fabricated |
| Thickness: | SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XS, XXS available with NACE MR 01-75 |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Carbon Steel Pipe Fitting |
| Elbows: | Angle: 22.5 deg, 30 deg, 45 deg, 90 deg, 180 deg, 1D, 1.5D, 2D, 2.5D, 3D, 4D, 5D, 6D, 7D, 8D, 10D-40D. Standard: ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-75 JISB2311 JISB2312 JISB2313, DIN2605 GB, BS, ISO |
| Manufacturing process: | Forge, Cast, Push, Press, etc. |
| Key markets and industries: | Bitumen upgraders. Petrochemicals and acids. Heavy oil refineries. Nuclear power (largely seamless). |
| Test Certificates (TC): | Raw Materials Certificate, EN 10204/3.1B, 100% Radiography Test Report, Third Party Inspection Report, etc |
| Material Test Certificates (MTC): | As per EN 10204 3.1 and EN 10204 3.2, TC certifying NACE MR0103, NACE MR0175 |
| Uses & Application: | Fittings To Connect Pipe & Tubes in Petroleum, Chemical, Power, Gas, Construction, Metallurgy, Shipbuilding. Schedule 10 fittings are an economical alternative for lower-pressure applications. Schedule 40 fittings have a thicker wall for higher-pressure applications. |
Carbon Steel Buttweld Fittings Equivalent Grades
| EN # | EN name | SAE | UNS | DIN | BS 970 | UNI | JIS |
|---|---|---|---|---|---|---|---|
| Carbon steels | |||||||
| 1.1141 1.0401 1.0453 |
C15D C18D |
1018 | CK15 C15 C16.8 |
040A15 080M15 080A15 EN3B |
C15 C16 1C15 |
S15 S15CK S15C |
|
| 1.0503 1.1191 1.1193 1.1194 |
C45 | 1045 | C45 CK45 CF45 CQ45 |
060A47 080A46 080M46 |
C45 1C45 C46 C43 |
S45C S48C |
|
| 1.0726 1.0727 |
35S20 45S20 |
1140/1146 | 35S20 45S20 |
212M40 En8M |
|||
| 1.0715 1.0736 |
11SMn37 | 1215 | 9SMn28 9SMn36 |
230M07 En1A |
CF9SMn28 CF9SMn36 |
SUM 25 SUM 22 |
|
| 1.0718 1.0737 |
11SMnPb30 11SMnPb37 |
12L14 | 9SMnPb28 9SMnPb36 |
230M07 Leaded En1A Leaded |
CF9SMnPb29 CF9SMnPb36 |
SUM 22L SUM 23L SUM 24L |
|
Carbon Steel Pipe Fittings Chemical Composition
| Chemical composition of ASTM A234 Carbon and Alloy Steel Fittings | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Grade | C | Mn | P max | S max | Si | Cr | Mo | Ni | Cu | Others |
| WPB (1,2,3,4,5) |
0.30 max |
0.29-1.06 | 0.050 | 0.058 | 0.10 min |
0.40 max |
0.15 max |
0.40 max |
0.40 max |
V 0.08 max |
| WPC (2,3,4,5) |
0.35 max |
0.29-1.06 | 0.050 | 0.058 | 0.10 min |
0.40 max |
0.15 max |
0.40 max |
0.40 max |
V 0.08 max |
| WP1 | 0.28 max |
0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | 0.44-0.65 | ||||
| WP12 CL1 | 0.05- 0.20 |
0.30-0.80 | 0.045 | 0.045 | 0.60 max |
0.80-1.25 | 0.44-0.65 | |||
| WP12 CL2 | 0.05- 0.20 |
0.30-0.80 | 0.045 | 0.045 | 0.60 max |
0.80-1.25 | 0.44-0.65 | |||
| WP11 CL1 | 0.05- 0.15 |
0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | |||
| WP11 CL2 | 0.05- 0.20 |
0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | |||
| WP11 CL3 | 0.05- 0.20 |
0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | |||
| WP22 CL1 | 0.05- 0.15 |
0.30-0.60 | 0.040 | 0.040 | 0.50 max |
1.90-2.60 | 0.87-1.13 | |||
| WP22 CL3 | 0.05- 0.15 |
0.30-0.60 | 0.040 | 0.040 | 0.50 max |
1.90-2.60 | 0.87-1.13 | |||
| WP5 CL1 | 0.15 max |
0.30-0.60 | 0.040 | 0.030 | 0.50 max |
4.0-6.0 | 0.44-0.65 | |||
| WP5 CL3 | 0.15 max |
0.30-0.60 | 0.040 | 0.030 | 0.50 max |
4.0-6.0 | 0.44-0.65 | |||
| WP9 CL1 | 0.15 max |
0.30-0.60 | 0.030 | 0.030 | 1.00 max |
8.0-10.0 | 0.90-1.10 | |||
| WP9 CL3 | 0.15 max |
0.30-0.60 | 0.030 | 0.030 | 1.00 max |
8.0-10.0 | 0.90-1.10 | |||
| WPR | 0.20 max |
0.40-1.06 | 0.045 | 0.050 | 1.60- 2.24 |
0.75-1.25 | ||||
| WP91 | 0.08- 0.12 |
0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.0-9.5 | 0.85-1.05 | 0.40 max |
V 0.18- 0.25 Nb 0.06-0.10 N 0.03-0.07 Al 0.02 max(6) Ti 0.01 max(6) Zr 0.01 max(6) |
|
| WP911 | 0.09- 0.13 |
0.30-0.60 | 0.020 | 0.010 | 0.10-0.50 | 8.0-9.5 | 0.90-1.10 | 0.40 max |
V 0.18-0.25 Nb 0.060-0.10 N 0.04-0.09 Al 0.02 max(6) B 0.0003-0.006 W 0.90-1.10 Ti 0.01 max(6) Zr 0.01 max(6) |
|
- Fittings from bar or plate 0.35 max carbon.
- Fittings from forgings 0.35 max Carbon and 0.35 max Silicon with no minimum.
- The sum of Cu, Ni, Niobium, and Moly shall not exceed 1.00%.
- For each reduction of 0.01% below the specified Carbon maximum, an increase of 0.06% Manganese above the specified maximum is permitted, up to a maximum of 1.35%.
- The sum of Niobium and Moly shall not exceed 0.32%.
- Applies to heat and product analyses
Carbon Steel Pipe Fittings Mechanical Properties
| Tensile and Yield Strength ASTM A234 for Carbon and Alloy Steel Fittings | WPB | WPC, WP11-CL2 |
WP11-CL1, WP22-CL1 WP5-CL1 WP9-CL1 |
WP11-CL3, WP22-CL3 WP5-CL3 WP9-CL3 |
WP91 |
|---|---|---|---|---|---|
| Tensile strength, minimum unless a range is given ksi (MPa) | 60 (415) | 70 (485) | 60 (415) | 75 (520) | 90 (620) |
| Yield strength, min ksi (MPa) (0.2% offset or 0.5% extension under-load) | 35 (240) | 40 (275) | 30 (205) | 45 (310) | 60 (415) |
| Elongation ASTM A234 for Carbon and Alloy Steel Fittings | WPB, WPC, WP11, WP22 |
WP91 | ||
|---|---|---|---|---|
| Longitud. | Transverse | Longitud. | Transverse | |
| Standard round specimen, or small proportional specimen, min % in 4 D |
22 | 14 | 20 | 13 |
| Rectangular specimen for wall thickness 5/16″ and over, and for all small sizes tested in full section; min % in 2 in. |
30 | 20 | ||
| Rectangular specimen for wall thickness less than 5/16″; min % in 2 in (1/2″ wide specimen) |
see note | |||
Note: For each 0.79 mm decrease in wall thickness below 7.94 mm, a deduction of 1.5 % for longitudinal and 1.0 % for transverse from standard values are permitted
Carbon Steel Pipe Fittings Size Range
| Below Mentioned Pipe Fitting Size: 1/2″ – 48″ | |
| ASTM A234 WPB Elbow – Long Radius | ASTM A420 WPL6 Stub Ends |
| ASTM A420 WPL3 Elbow – Short Radius | ASTM A860 WPHY 52 Cross |
| ASTM A860 WPHY 65 Reducing Elbow | ASTM A860 WPHY 60 Reducing Cross |
| ASTM A860 WPHY 42 45° Elbow | ASTM A860 WPHY 70 Tees |
| ASTM A860 WPHY 46 Fabricated Tee | Carbon Steel ASTM A234 WPB End Cap |
| Carbon Steel WPB Reducer | Carbon Steel A234 Coupling |
| Carbon Steel Concentric Reducer | Carbon Steel A420 Pipe Nipple |
| Carbon Steel Eccentric Reducer | Carbon Steel A860 5D Elbow |
| Carbon Steel A234 3D Elbow | Carbon Steel Welded Pipe Fittings |
Carbon Steel Buttweld Fittings Standards
| German Steel Pipe Fittings Standard | |
| Standard Name | Standard Code |
| Steel butt-welding pipe fittings.elbows and bends | DIN 2605 |
| Steel butt-welding pipe fittings.tees | DIN 2615 |
| Steel butt-welding pipe fittings.reducers | DIN 2616 |
| Steel butt-welding pipe fittings.caps | DIN 2617 |
| American Steel Pipe Fittings Standard | |
| Forged Durimet pipe fittings | ANSI ASME SA-234 |
| Factory-Made wrought steel pipe fittings | ANSI ASME B16.9 |
| Wrought steel butt-welding short radius elbows and returns | ANSI ASME B16.28 |
| Steel butt-welding fittings | ISO 5251 |
| Carbon Steel butt-welding fittings | MSS SP-43 |
| Forging butt-welding fittings | MSS SP-75 |
| Russian Steel Pipe Fittings Standard | |
| Carbon and low-alloy steel butt-welding fittings. Sharply curved bends type 3D (R=1,5 DN). Design | Gost17375 |
| Carbon and low-alloy steel butt-welding fittings.Tees. Design | Gost17376 |
| Carbon and low-alloy steel butt-weldings fittings. Sharply curved bends type 2D (R=DN). Design | Gost30753 |
| Carbon and low-alloy steel butt-weldings. Reducers. Design | Gost17378 |
| Carbon and low-alloy steel butt-welding fittings. Elliptical caps. Design | Gost17379 |
| Carbon and low-alloy steel butt-weldings fittings. General specifications | Gost17380 |
| Japanese Steel Pipe Fittings Standard | |
| Universal steel butt-welding pipe fittings | JIS B2311 |
| Steel butt-welding pipe fittings | JIS B2312 |
| Steel plate butt-welding pipe fittings | JIS B2313 |
| Other Steel Pipe Fittings Standard | |
| 3 Butt-welding pipe fittings | EN 1025 |
ASTM A234 Fitting Classes for Grades
CR : Corrosion resistant grade. S through WU Classes do not apply.
WPB-S : Seamless
WPB-W : Welded, Weldable, RT or UT all pipe starting material welds made with filler metal. All carbon steel pipe ffitting manufacturer welds except as excluded in A/SA234.
If UT is substituted for RT, all welds must be examined 100% for their length as required by A/SA234.
WPB-WX : RT all welds with or without filler metal.
WPB-WU : UT all welds with or without filler metal.
grade-grade-class : Insert grades (WPB-WPB) and class (S,W,WX, or WU). Applies to fittings meeting all chemical and physical requirements of both grades.
Carbon Steel Pipe Fittings Dimensional Tolerances
Tolerances of butt weld fittings (in inches) according to ASME/ANSI B16.9. for all carbon alloy fittings except short radius elbows and returns (ASME/ANSI B16.28).
| Buttweld Fittings ASME B16.9 Tolerance (Elbow, Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Pipe Reducer & Lap Joint Stub End |
Pipe Cap | |||
| Buttweld Fitting Dimension (NPS) | Outside Diameter at Bevel |
Inside Diameter at End |
WallThickness T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Carbon Steel Dimensions and Tolerances MSS SP-43
The tolerances and dimensions defined in MSS SP-43 are substantially the same as defined in ASME/ANSI specifications (½ to 24 in). MSS SP-43 only covers buttweld fittings made for use with Schedule 10S and 5S pipe as defined in ANSI/ASME B36.19M also it covers short pattern stub ends suitable for use with Schedule 40S pipe.
- MSS SP-43 tolerances are the same as for ASME/ANSI B16.9 and B16.28 except with regard to the outside diameter at the bevel:
- Tolerance of OD at Bevel =
- ± 0.03 in for NPS ½ to 4
- +0.06, -0.03 in for NPS 5 to 8
- +0.09, -0.03 in for NPS 10 to 18
- +0.12, to -0.03 in for NPS 20 to 24
Carbon Steel Pipe Fittings Dimensions, Carbon Steel Pipe Fittings Weight
Dimensions and weights of ASME B16.9 Carbon Steel Buttweld 45 Degree Elbow, 90 Degree Elbows Short and Long Radius (NPS 1/2 to 24, schedule STD/XS)
| Pipe Elbow Nominal Size | Pipe Elbow Outside Diameter Y |
Wall Thickness T (Pipe Elbow Schedule) |
45 Deg. Elbow LR Centre to Face B | 45 Deg. Elbow LR Weight |
90 Deg. Elbow LR Centre to Face A | 90 Deg. Elbow LR Weight | 90 Deg. Elbow SR Centre to Face A | 90 Deg. Elbow SR Weight | ||
| mm | in | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Dimensions and weights of ASME B16.9 Carbon Steel Buttweld Tee and Cap (NPS 1/2 to 24, schedule STD/XS)
| Buttweld Tee and Cap Nominal Size |
Pipe Tee and Cap Outside Diameter Y |
Pipe Tee and Cap Wall Thickness T |
Buttweld Tee Dimensions (C and M) |
Buttweld Tee Weight |
Buttweld Cap End to End |
Buttweld Cap Weight |
||
| mm | in | mm | mm | Schedule | mm | mm | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 25.4 | 0.58 | ||
| 3.73 | X.S | 25.4 | 0.21 | |||||
| 20 | 3/4” | 26.7 | 2.87 | STD | 28.6 | 0.21 | ||
| 3.91 | X.S | 28.6 | 0.27 | |||||
| 25 | 1” | 33.4 | 3.38 | STD | 38.1 | 0.34 | 38.1 | 0.1 |
| 4.55 | X.S | 38.1 | 0.43 | 38.1 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 47.6 | 0.64 | 38.1 | 0.14 |
| 4.85 | X.S | 47.6 | 0.75 | 38.1 | 0.18 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 57.1 | 0.95 | 38.1 | 0.18 |
| 5.08 | X.S | 57.1 | 1.13 | 38.1 | 0.23 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 63.5 | 1.45 | 38.1 | 0.27 |
| 5.54 | X.S | 63.5 | 1.72 | 38.1 | 0.32 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 76.2 | 2.45 | 38.1 | 0.41 |
| 7.01 | X.S | 76.2 | 2.95 | 38.1 | 0.45 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 85.7 | 3.45 | 50.8 | 0.64 |
| 7.62 | X.S | 85.7 | 4.3 | 50.8 | 0.82 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 105.0 | 5.7 | 63.5 | 1.13 |
| 8.56 | X.S | 105.0 | 7.3 | 63.5 | 1.54 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 124.0 | 9.1 | 76.2 | 1.91 |
| 9.5 | X.S | 124.0 | 11.8 | 76.2 | 2.59 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 143.0 | 13.6 | 88.9 | 2.95 |
| 10.97 | X.S | 143.0 | 19.0 | 88.9 | 4.1 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 178.0 | 25.0 | 101.6 | 5.0 |
| 12.7 | X.S | 178.0 | 33.5 | 101.6 | 7.3 | |||
| 250 | 10” | 273.0 | 9.27 | STD | 216.0 | 41.0 | 127.0 | 9.1 |
| 12.7 | X.S | 216.0 | 54.0 | 127.0 | 12.0 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 254.0 | 57.0 | 152.4 | 13.6 |
| 12.7 | X.S | 254.0 | 77.0 | 152.4 | 17.0 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 279.0 | 73.0 | 165.1 | 15.9 |
| 12.7 | X.S | 279.0 | 93.0 | 165.1 | 21.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 305.0 | 91.0 | 178.8 | 20.0 |
| 12.7 | X.S | 305.0 | 120.0 | 178.8 | 26.0 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 343.0 | 127.0 | 203.2 | 26.0 |
| 12.7 | X.S | 343.0 | 165.0 | 203.2 | 34.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 381.0 | 227.0 | 228.6 | 33.0 |
| 12.7 | X.S | 381.0 | 270.0 | 228.6 | 43.0 | |||
| 600 | 24” | 610.0 | 9.52 | STD | 432.0 | 345.0 | 266.7 | 46.0 |
| 12.7 | X.S | 432.0 | 430.0 | 266.7 | 61.0 | |||
Dimensions and Weights of ASME B16.9 Carbon Steel Buttweld Concentric Reducers and Eccentric Reducers(NPS 1/2 to 24, schedule STD/XS)
| Buttweld Reducer Nominal Size |
Pipe Reducer Length H | Pipe Reducer Schedule T | Pipe Reducer Weight |
|
| mm | in | mm | Kg | |
| 20×15 | 3/4” x 1/2” | 38.1 | STD | 0.07 |
| XS | 0.1 | |||
| 25×15 | 1” x 1/2” | 50.8 | STD | 0.14 |
| X.S | 0.18 | |||
| 25×20 | 1” x 3/4” | 50.8 | STD | 0.14 |
| X.S | 0.18 | |||
| 32×15 | 11/4” x 1/2” | 50.8 | STD | 0.18 |
| X.S | 0.23 | |||
| 32×20 | 11/4” x 3/4“ | 50.8 | STD | 0.18 |
| X.S | 0.23 | |||
| 32×25 | 11/4” x 1” | 50.8 | STD | 0.18 |
| X.S | 0.23 | |||
| 40×15 | 11/2” x 1/2” | 63.5 | STD | 0.27 |
| X.S | 0.32 | |||
| 40×20 | 11/2” x 3/4” | 63.5 | STD | 0.27 |
| X.S | 0.32 | |||
| 40×25 | 11/2” x 1” | 63.5 | STD | 0.27 |
| X.S | 0.32 | |||
| 40×32 | 11/2” x 11/4” | 63.5 | STD | 0.27 |
| X.S | 0.32 | |||
| 50×15 | 2” x 1/2” | 76.2 | STD | 0.41 |
| X.S | 0.54 | |||
| 50×20 | 2” x 3/4” | 76.2 | STD | 0.41 |
| X.S | 0.54 | |||
| 50×25 | 2”x1” | 76.2 | STD | 0.41 |
| X.S | 0.54 | |||
| 50×32 | 2” x 11/4” | 76.2 | STD | 0.41 |
| X.S | 0.54 | |||
| 50×40 | 2” x 11/2” | 76.2 | STD | 0.41 |
| X.S | 0.54 | |||
| 65×25 | 21/2” x 1” | 88.9 | STD | 0.68 |
| X.S | 0.91 | |||
| 65×32 | 21/2” x 11/4” | 88.9 | STD | 0.68 |
| X.S | 0.91 | |||
| 65×40 | 21/2” x 11/2” | 88.9 | STD | 0.68 |
| X.S | 0.91 | |||
| 65×50 | 21/2” x 2” | 88.9 | STD | 0.68 |
| X.S | 0.91 | |||
| 80×40 | 3” x 11/2” | 88.9 | STD | 0.77 |
| X.S | 1.09 | |||
| 80×50 | 3”x2” | 88.9 | STD | 0.91 |
| X.S | 1.22 | |||
| 80×65 | 3” x 21/2” | 88.9 | STD | 0.91 |
| X.S | 1.27 | |||
| 100×40 | 4” x 11/2” | 101.6 | STD | 1.36 |
| X.S | 1.91 | |||
| 100×50 | 4”x2” | 101.6 | STD | 1.40 |
| X.S | 1.95 | |||
| 100×65 | 4” x 21/2” | 101.6 | STD | 1.45 |
| X.S | 2.04 | |||
| 100×80 | 4”x3” | 101.6 | STD | 1.59 |
| X.S | 2.08 | |||
| 125×80 | 5”x3” | 127.0 | STD | 2.5 |
| X.S | 3.4 | |||
| 125 x 100 | 5”x4” | 127.0 | STD | 2.7 |
| X.S | 3.8 | |||
| 150×50 | 6”x2” | 140.0 | STD | 3.4 |
| X.S | 4.3 | |||
| 150×65 | 6” x 21/2” | 140.0 | STD | 3.4 |
| X.S | 4.5 | |||
| 150×80 | 6”x3” | 140.0 | STD | 3.6 |
| X.S | 4.8 | |||
| 150 x 100 | 6”x4” | 140.0 | STD | 3.7 |
| X.S | 5.2 | |||
| 150 x 125 | 6”x5” | 140.0 | STD | 3.9 |
| X.S | 5.4 | |||
| 200×80 | 8”x3” | 152.4 | STD | 4.5 |
| X.S | 7.2 | |||
| 200 x 100 | 8”x4” | 152.4 | STD | 5.0 |
| X.S | 7.7 | |||
| 200 x 125 | 8”x5” | 152.4 | STD | 5.4 |
| X.S | 8.2 | |||
| 200 x 150 | 8”x6” | 152.4 | STD | 5.9 |
| X.S | 8.6 | |||
| 250 x 100 | 10”x4” | 178.0 | STD | 9.1 |
| X.S | 11.8 | |||
| 250 x 125 | 10”x5” | 178.0 | STD | 9.5 |
| X.S | 13.6 | |||
| 250 x 150 | 10”x6” | 178.0 | STD | 9.5 |
| X.S | 13.6 | |||
| 250 x 200 | 10”x8” | 178.0 | STD | 10.0 |
| X.S | 14.0 | |||
| 300 x 150 | 12”x6” | 203.0 | STD | 14.1 |
| X.S | 18.1 | |||
| 300 x 200 | 12”x8” | 203.0 | STD | 14.5 |
| X.S | 19.1 | |||
| 300 x 250 | 12” x 10” | 203.0 | STD | 15.4 |
| X.S | 20.0 | |||
| 350 x 200 | 14”x8” | 330.0 | STD | 26.3 |
| X.S | 34.9 | |||
| 350 x 250 | 14” x 10” | 330.0 | STD | 27.2 |
| X.S | 36.3 | |||
| 350 x 300 | 14” x 12” | 330.0 | STD | 28.6 |
| X.S | 37.6 | |||
| 400 x 200 | 16”x8” | 356.0 | STD | 31.8 |
| X.S | 42.6 | |||
| 400 x 250 | 16” x 10” | 356.0 | STD | 33.1 |
| X.S | 43.5 | |||
| 400 x 300 | 16” x 12” | 356.0 | STD | 34.5 |
| X.S | 45.4 | |||
| 400 x 350 | 16” x 14” | 356.0 | STD | 35.4 |
| X.S | 46.3 | |||
| 450 x 250 | 18” x 10” | 381.0 | STD | 38.0 |
| X.S | 52.1 | |||
| 450 x 300 | 18” x 12” | 381.0 | STD | 39.0 |
| X.S | 53.5 | |||
| 450 x 350 | 18” x 14” | 381.0 | STD | 40.0 |
| X.S | 54.9 | |||
| 450 x 400 | 18” x 16” | 381.0 | STD | 40.8 |
| X.S | 53.5 | |||
| 500 x 250 | 20” x 10” | 508.0 | STD | 53.0 |
| X.S | 79.9 | |||
| 500 x 300 | 20” x 12” | 508.0 | STD | 54.4 |
| X.S | 82.0 | |||
| 500 x 350 | 20” x 14” | 508.0 | STD | 57.6 |
| X.S | 80.2 | |||
| 500 x 400 | 20” x 16” | 508.0 | STD | 58.9 |
| X.S | 82.0 | |||
| 500 x 450 | 20” x 18” | 508.0 | STD | 61.7 |
| X.S | 82.0 | |||
| 600 x 300 | 24” x 12” | 508.0 | STD | 63.5 |
| X.S | 84.4 | |||
| 600 x 350 | 24” x 14” | 508.0 | STD | 65.3 |
| X.S | 86.8 | |||
| 600 x 400 | 24” x 16” | 508.0 | STD | 68.0 |
| X.S | 90.4 | |||
| 600 x 450 | 24” x 18” | 508.0 | STD | 72.6 |
| X.S | 96.5 | |||
| 600 x 500 | 24” x 20” | 508.0 | STD | 77.1 |
| X.S | 102.5 | |||
Carbon Steel Buttweld Fittings Types
- Carbon Steel 90 Degree Elbow
- Carbon Steel 45 Degree Elbow
- Carbon Steel 180 Degree Elbow
- Carbon Steel 1D / 1.5D Elbow
- Carbon Steel 3D / 5D Elbow
- Carbon Steel Equal Tee
- Carbon Steel Unequal Tee / Reducing Tee
- Carbon Steel Lateral Tee
- Carbon Steel Long Radius Pipe Bend
- Carbon Steel Split Tee
- Carbon Steel Concentric Reducer
- Carbon Steel Eccentric Reducer
- Carbon Steel Equal Cross
- Carbon Steel Unequal Cross
- Carbon Steel Lap Joint Stub End
- Carbon Steel End Cap/ Pipe Cap
- Carbon Steel Piggable Bend
- Carbon Steel Hot Induction Pipe Bend
- Carbon Steel J PipeBend
- Carbon Steel Mitered Pipe Bend
- Carbon Steel U Pipe Bend
- Carbon Steel 3D Pipe Bend
- Carbon Steel 5D Pipe Bend
- Carbon Steel 8D Pipe Bend
- Carbon Steel 10D Pipe Bend
- Carbon Steel IBR Approved Buttweld Fittings
- Carbon Steel Hub and Clamp Connector
Note: Prices are based on product, material grade and quantity. Contact us anytime to get full quotation.
Carbon Steel A234 WPB Buttweld Pipe Fittings – Applications & Industries
Oil & Gas Industries
Gas Processing Industries
Food Processing Industries
Petrochemical Industries
Chemical Industries
Power Generation Industries
Sugar Industries
Fertilizers Industries
We are well-known prestigious Manufacturers, Exporters, and Suppliers of high quality Carbon Steel A234 WPB Buttweld Pipe Fittings. We supply ANSI B16.9 Carbon Steel Pipe Fittings to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications. Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.
Ready Stock of Carbon Steel Pipe Fittings Export to
Africa Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe
Europe,Albania, Finland, France, Ireland, Italy, Andorra, Armenia, Austria, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Georgia, Germany, Denmark, Estonia, Kazakhstan, Kosovo, Greece, Hungary, Iceland, Latvia, Liechtenstein, Azerbaijan, Belarus, Belgium, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City
AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela
Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Oman, Pakistan, Palestine, Philippines, Qatar, Nepal, North Korea, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu
Please send us the complete details of Carbon Steel Buttweld Pipe Fittings requirement. We offer Carbon Steel Seamless Fittings, Carbon Steel Weld Fittings and ASTM A234 WPB Buttweld Pipe Fittings which are accurately designed to provide satisfaction to our customers. We have a team of highly skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these ASTM A860 Carbon Steel Elbow, Tee, ASTM A234 WPB Reducer, Bend, Cross, ASTM A234 WPB End Caps, Stub Ends, Coller, Pipe Nipple at our valuable customers end.
sales@metalfed.com | +91 9137898594 | Quotation Form | Reach Us
