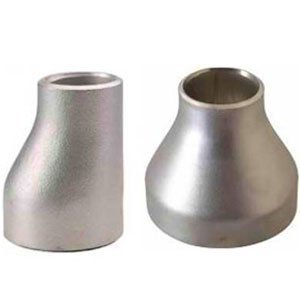

Concentric and Eccentric Reducer Supplier

Manufacturer of ASME B16.9 Reducer, Eccentric Reducer, Concentric Reducer A234 WPB, Concentric Reducer B16.9 Dimensions

Concentric and Eccentric Reducer Suppliers

Metalfed Engineering is oldest reputed Concentric Reducer Suppliers in India. Our offered Eccentric Reducer is mostly used in various industries such as petroleum, power generation, chemical, papermaking, shipbuilding, natural gas, heating and metallurgy. Our offered A234 WPB Concentric Reducer is appreciated for its perfect dimensional accuracy and excellent quality standards. The increased Concentric Reducer wall thickness provides added durability and is less prone to cracking due to thermal stress for gas temperature.

We are exporting these ASME B16.9 Concentric Reducer and Eccentric Reducer B16.9 n various size, dimensions, shape, thickness, and specifications. We also provide customized and non-customized Weld Concentric Reducer to our clientat market leading rates that are perfectly reliable in crucial applications as well.

We have ready stock of high-quality Concentric and Eccentric Reducer Fittings. We are exporting Concentric Reducer B16.9 in a significant quantity which manufactured by using upgraded latest techniques and machinery.Our offered Concentric Reducer and Eccentric Reducer Fittings are designed as per the industry standards, which are manufactured using high grade material that assures its durability & long service life under the supervision of skilled professionals that having excellent knowledge of development.

Exporter of Concentric Reducer SCH80, SS Eccentric Reducer, 300# Eccentric Reducer, Concentric Reducer EN 10253 2, BS 1640 Reducer, Concentric Exhaust Reducer, Concentric Reducer Pipe, Concentric Reducer Pipe Fittings, Concentric Reducer at best Price.

Table of Content

Our Carbon Steel A234 WPB Concentric Reducer is tested and certified for durability, accuracy, and quality. According to the ASME B16.9 specification, we exporting Concentric Reducers Type B of various schedules and wall thickness such as – Schedule 5S, S20, S30, STD, 10S, 20S, S10, 40S, S40, S60, S80, S100, XS, 80S, S120, S140, S160, XXS and etc. We are also engaged in exporting Eccentric Reducer Stainless Steel and Concentric Reducer EN 10253 2 in all sizes, in Seamless and Welded.The ASME B16.9 specification for Concentric Pipe Reducer covers fittings of any producible wall thickness.

If you are looking for Buttweld Concentric Reducer shipped to your country then contact us anytime for full quotation. Check our free sample of Concentric Reducer along free quotation. We can guarantee for best price of Concentric Exhaust Reducer & fastest delivery in your country, you can test our free sample of Concentric Reducer at your end before placing the order.

Reputed Stockist of ANSI B16.9 Concentric Reducer, Galvanised Eccentric Reducer, Eccentric Reducer WPB, Concentric Reducer TYPE B Supplier in Mumbai, CS Concentric Reducer, Eccentric Reducer Pipe Fittings, Concentric Reducer Fitting Eccentric Reducer Suppliers in UAE.

ASME B16.9 Concentric Reducer Specifications
Dimension

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size

1/2″NB TO 48″NB IN.

DIN

DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN

EN10253-1, EN10253-2

Form

Butt weld Concentric Reducer, Fitting Concentric Reducer, Concentric Exhaust Reducer , Concentric Pipe Reducer.

Thickness

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type

Welded / ERW / Welded / Fabricated

GET UPDATED PRICE AND COMPLETE QUOTATION WITHIN AN HOUR sales@metalfed.com

ASME B16.9 Concentric Reducer Dimensions, ASME B16.9 Eccentric Reducer Dimensions, Buttweld Concentric Eccentric Reducer Dimensions
NPS O.D.
D		 O.D.
D1		 Len
H
3/4-1/2 26.7 21.3 38
1-1/2 33.4 21.3 51
1-3/4 33.4 26.7 51
1¼-1/2 42.2 21.3 51
1¼-3/4 42.2 26.7 51
1¼-1 42.2 33.4 51
1½-1/2 48.3 21.3 64
1½-3/4 48.3 26.7 64
1½-1 48.3 33.4 64
1½-1¼ 48.3 42.2 64
2-3/4 60.3 26.7 76
2-1 60.3 33.4 76
2-1¼ 60.3 42.2 76
2-1½ 60.3 48.3 76
2½-1 73 33.4 89
2½-1¼ 73 42.2 89
2½-1½ 73 48.3 89
2½-2 73 60.3 89
3-1¼ 88.9 42.2 89
3-1½ 88.9 48.3 89
3-2 88.9 60.3 89
3-2½ 88.9 73 89
3½-1¼ 101.6 42.2 102
3½-1½ 101.6 48.3 102
3½-2 101.6 60.3 102
3½-2½ 101.6 73 102
3½-3 101.6 88.9 102
4-1½ 114.3 48.3 102
4-2 114.3 60.3 102
4-2½ 114.3 73 102
4-3 114.3 88.9 102
4-3½ 114.3 101.6 102
5-2 141.3 60.3 127
5-2½ 141.3 73 127
5-3 141.3 88.9 127
5-3½ 141.3 101.6 127
5-4 141.3 114.3 127
6-2½ 168.3 73 140
6-3 168.3 88.9 140
6-3½ 168.3 101.6 140
6-4 168.3 114.3 140
6-5 168.3 141.3 140
8-3½ 219.1 101.6 152
8-4 219.1 114.3 152
8-5 219.1 141.3 152
8-6 219.1 168.3 152
10-4 273 114.3 178
10-5 273 141.3 178
10-6 273 168.3 178
10-8 273 219.1 178
12-5 323.9 141.3 203
12-6 323.9 168.3 203
12-8 323.9 219.1 203
12-10 323.9 273 203
14-6 355.6 168.3 330
14-8 355.6 219.1 330
14-10 355.6 273 330
14-12 355.6 323.9 330
16-8 406.4 219 356
16-10 406.4 273 356
16-12 406.4 323.9 356
16-14 406.4 355.6 356
18-10 457 273 381
18-12 457 323.9 381
18-14 457 355.6 381
18-16 457 406.4 381
20-12 508 323.9 508
20-14 508 355.6 508
20-16 508 406.4 508
20-18 508 457 508
22-14 559 355.6 508
22-16 559 406.4 508
22-18 559 457 508
22-20 559 508 508
24-16 610 406.4 508
24-18 610 457 508
24-20 610 508 508
24-22 610 559 508
26-18 660 457 610
26-20 660 508 610
26-22 660 559 610
26-24 660 610 610
28-18 711 457 610
28-20 711 508 610
28-24 711 610 610
28-26 711 660 610
30-20 762 508 610
30-24 762 610 610
30-26 762 660 610
30-28 762 711 610
32-24 813 610 610
32-26 813 660 610
32-28 813 711 610
32-30 813 762 610
34-24 864 610 610
34-26 864 660 610
34-30 864 762 610
34-32 864 813 610
36-24 914 610 610
36-26 914 660 610
36-30 914 762 610
36-32 914 813 610
36-34 914 864 610
38-26 965 660 610
38-28 965 711 610
38-30 965 762 610
38-32 965 813 610
38-34 965 864 610
38-36 965 914 610
40-30 1016 762 610
40-32 1016 813 610
40-34 1016 864 610
40-36 1016 914 610
40-38 1016 965 610

ANSI B16.9 Concentric Reducer Weight Chart,ASME B16.9 Eccentric Reducer Weight in KG
NPS LBS KG
3/4-1/2 0.17 0.08
3/4-3/8 0.15 0.07
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1¼-1 0.5 0.23
1¼-3/4 0.4 0.18
1¼-1/2 0.4 0.18
1½-1¼ 0.7 0.32
1½-1 0.62 0.28
1½-3/4 0.54 0.24
1½-1/2 0.5 0.23
2-1½ 0.9 0.41
2-1¼ 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2½-2 1.5 0.68
2½-1½ 1.38 0.63
2½-1¼ 1.25 0.57
2½-1 1.25 0.57
3-2½ 2 0.91
3-2 1.8 0.82
3-1½ 1.7 0.77
3-1¼ 1.6 0.73
3½-3 3.15 1.43
3½-2½ 2.88 1.31
3½-2 2.75 1.25
3½-1½ 2.5 1.13
3½-1¼ 2.4 1.09
4-3½ 3.5 1.59
4-3 3.38 1.53
4-2½ 3.25 1.47
4-2 3 1.36
4-1½ 2.88 1.31
5-4 6 2.72
5-3½ 5.75 2.61
5-3 5.5 2.49
5-2½ 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3½ 8.25 3.74
6-3 8 3.63
6-2½ 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3½ 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 – –
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 – –
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 – –
20-8 – –
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 – –
22-10 – –
24-22 – –
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 – –
24-12 – –
24-10 – –
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 – –
26-14 – –
26-12 – –
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79

ANSI B16.9 Concentric Reducer Sizes
NOMINAL PIPE SIZE OUTSIDE DIAMETER END TO END
Inch D P H
3/4 x 1/2 26.7 21.3 38
3/4 x 3/8 26.7 17.1 38
1 x 3/4 33.4 26.7 51
1 x 1/2 33.4 21.3 51
1 1/4 x 1 42.2 33.4 51
1 1/4 x 3/4 42.2 26.7 51
1 1/4 x 1/2 42.2 21.3 51
1 1/2 x 1 1/2 48.3 42.2 64
1 1/2 x 1 48.3 33.4 64
1 1/2 x 3/4 48.3 26.7 64
1 1/2 x 1/2 48.3 21.3 64
2 x 1 1/2 60.3 48.2 76
2 x 1 1/4 60.3 42.2 76
2 x 1 60.3 33.4 76
2 x 3/4 60.3 26.7 76
2 1/2 x 2 73 60.3 89
2 1/2 x 1 1/2 73 48.3 89
2 1/2 x 1 1/4 73 42.2 89
2 1/2 x 1 73 33.4 89
3 x 2 1/2 88.9 73 89
3 x 2 88.9 60.3 89
3 x 1 1/2 88.9 48.3 89
3 x 1 1/4 88.9 42.2 89
3 1/2 x 3 101.6 88.9 102
3 1/2 x 21/2 101.6 73 102
3 1/2 x 2 101.6 60.3 102
3 1/2 x 1 1/2 101.6 48.3 102
3 1/2 x 1 1/4 101.6 42.2 102
4 x 3 1/2 114.3 101.6 102
4 x 3 114.3 88.9 102
4 x 2 1/2 114.3 73 102
4 x 2 114.3 60.3 102
4 x 1 1/2 114.3 48.3 102
5 x 4 141.3 114.3 127
5 x 3 1/2 141.3 101.6 127
5 x 3 141.3 88.9 127
5 x 2 1/2 141.3 73 127
5 x 2 141.3 60.3 127
6 x 5 168.3 141.3 140
6 x 4 168.3 114.3 140
6 x 3 1/2 168.3 101.6 140
6 x 3 168.3 88.9 140
6 x 2 1/2 168.3 73 140
8 x 6 219.1 168.3 152
8 x 5 219.1 141.3 152
8 x 4 219.1 114.3 152
8 x 3 1/2 219.1 101.6 152
10 x 8 273.1 219.1 178
10 x 6 273.1 168.1 178
10 x 5 273.1 141.3 178
10 x 4 273.1 114.3 178
12 x 10 323.9 273.1 203
12 x 8 323.9 219.1 203
12 x 6 323.9 168.3 203
12 x 5 323.9 141.3 203
14 x 12 355.6 323.9 330
14 x 10 355.6 273.1 330
14 x 8 355.6 219.1 330
14 x 6 355.6 168.3 330
16 x 14 406.4 355.6 356
16 x 12 406.4 323.9 356
16 x 10 406.4 273.1 356
16 x 8 406.4 219.1 356
16 x 6 406.4 168.3 356
18 x 16 457 406.4 381
18 x 14 457 355.6 381
18 x 12 457 323.9 381
18 x 10 457 273.1 381
18 x 8 457 219.1 381
20 x 18 508 457 508
20 x 16 508 406.4 508
20 x 14 508 355.6 508
20 x 12 508 323.9 508
20 x 10 508 273.1 508
20 x 8 508 219.1 508
22 x 20 559 508 508
22 x 18 559 457 508
22 x 16 559 406.4 508
22 x 14 559 355.6 508
22 x 12 559 323.9 508
24 x 10 559 273.1 508
24 x 22 610 559 508
24 x 20 610 508 508
24 x 18 610 457 508
24 x 16 610 406.4 508
24 x 14 610 355.6 508
24 x 12 610 323.9 508
24 x 10 610 273.1 508
All Dimensions are in mm



DIMENSIONAL TOLERANCES OF ECCENTRIC REDUCER AND CONCENTRIC REDUCERS ASME B16.9
Nominal Pipe Size 1/2 to 2½ 3 to 3½ 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

ASME B16.9 Reducer Weight Calculator

Approximate weight of a buttweld concentric reducer can be calculated based on its length, two outside diameters, and wall thickness. Please note that actual weight of a concentric reducer from a particular manufacturer may vary depending on process of manufacturing. ASME B16.9 Dimensional standards do not provide weights of buttwelding fittings.

Weight of a Concnetric Eccentric Reducer as per ASME B16.9 is calculated as per following formula  :

  It this way, We should know some dimensions in mm and then calculate their weight by formula 0.02466 × S ×[ (D+d)/2-S] × H / 1000

  • S: Wall thickness of Butt Weld Reducer
  • D: Outside diameter of the larger end
  • d: Outside diameter of the small end
  • H: End to end dimension

ASME B 16.9 Reducer Types
  • Concentric Reducer B16.9
  • Concentric Reducer Stainless Steel
  • Buttweld Concentric Reducer
  • Concentric Exhaust Reducer
  • Concentric Reducer Pipe Fittings
  • Concentric Reducer SCH 80
  • CS Concentric Reducer
  • BS 1640 Reducer
  • Concentric Reducer Fittings
  • Concentric Reducer Pipe
  • Concentric Reducer Carbon Steel
  • Welded Concentric Reducer
  • Concentric Reduer EN 10253 2
  • BW Concentric Reducer
  • ASME B16.9 Concentric Reducer
  • Concentric Reducer BW
  • Grinnell Concentric Reducer
  • Concentric Reducer Grooved
  • Gruvlok Concentric Reducer
  • A234 WPB Concentric Reducer
  • Concentric Reducer Flange
  • Seamless Concentric Reducer
  • High Quality Concentric Reducer
  • Concentric Reducer Fittings
  • Hastelloy Concentric Reducer
  • Concentric Reducer A243 WPB
  • Concentric Reducer Type B
  • Concentric Reducer Coupling
  • Concentric Reducer ANSI B16.9
  • Butt Weld Pipe Concentric Reducer
  • Steel Concentric Reducer Pipe Fittings
  • ASME B16.28 Buttweld Concentric Reducer
  • ANSI B16.9 Buttweld Concentric Reducer
  • Seamless Butt weld Eccentric Reducer
  • High Quality Eccentric Reducer
  • Eccentric Reducer Fittings
  • Hastelloy Eccentric Reducer
  • Eccentric Reducer A243 WPB
  • 6 x 4 Eccentric Reducer
  • 8 x 6 Eccentric Reducer
  • Eccentric Reducer ANSI B16.9
  • Butt Weld Pipe Eccentric Reducer
  • Steel Eccentric Reducer Pipe Fittings
  • Eccentric Reducer B16.9
  • Eccentric Reducer Stainless Steel
  • Buttweld Eccentric Reducer
  • Eccentric Reducer SCH 40
  • Eccentric Reducer Pipe Fittings
  • SS Eccentric Reducer
  • Galvanised Eccentric Reducer
  • Eccentric Reducer Fittings
  • Eccentric Reducer Pipe
  • Eccentric Reducer Stainless Steel
  • Welded Eccentric Reducer
  • Eccentric Weld Reduer
  • BW Eccentric Reducer
  • ASME B16.9 Eccentric Reducer
  • Eccentric Reducer BW
  • Grinnell Eccentric Reducer
  • Grooved Eccentric Reducer
  • Gruvlok Eccentric Reducer
  • Rubber Eccentric Reducer
  • Eccentric Reducer Thread
  • ASME B16.28 Buttweld Eccentric Reducer
  • ANSI B16.9 Buttweld Eccentric Reducer

concentric and eccentric reducer

a

Can we use two reducer?

Category: concentric and eccentric reducer

Yes, it is possible to use two reducers in a piping system. However, it is generally recommended to use one reducer if possible, as multiple reducers can cause a loss of pressure and increase the risk of turbulence in the system.

a

What are the two types of reducer?

Category: concentric and eccentric reducer

The two types of reducer are concentric reducer and eccentric reducer. Concentric reducers have a centerline that maintains a consistent level between the two pipes, while eccentric reducers have an offset centerline.

a

What is concentric reducer used for?

Category: concentric and eccentric reducer

A concentric reducer is a type of fitting used in piping systems to connect pipes of different diameters. It is designed to maintain a consistent centerline between the two pipes, allowing for a smooth transition of flow. Concentric reducers are commonly used in industries such as petrochemical, oil and gas, and water treatment.

a

What is the angle of a concentric reducer?

Category: concentric and eccentric reducer

A concentric reducer typically has a taper angle of 1:10, which means that the diameter decreases by one-tenth of its original size for every unit of length. However, the taper angle can vary depending on the specific application and requirements of the piping system.

a

What is the difference between concentric and eccentric expansion joints?

Category: concentric and eccentric reducer

Both concentric and eccentric expansion joints are used to absorb thermal expansion and contraction in piping systems. However, the key difference between them is the location of the centerline. In a concentric expansion joint, the centerline of the two ends is aligned, while in an eccentric expansion joint, the centerline of the two ends is offset. This means that eccentric expansion joints are used when there is a need to accommodate movement in a single direction.

a

Why is eccentric reducer used?

Category: concentric and eccentric reducer

An eccentric reducer is similar to a concentric reducer in function, but its centerline is offset from the centerline of the connecting pipes. This type of fitting is used in piping systems where there is a need to maintain the same fluid flow rate, but also reduce the pressure in the system. Eccentric reducers are commonly used in industries such as chemical processing, pulp and paper, and food and beverage.

ASME B 16.9 Concentric Eccentric Reducer- Applications & Industries

We supply Pipe Reducer to customers in various industries including ASME B16.9 Concentric Reducer and Eccentric Reducer are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Concentric Reducer through a worldwide network of stock-keeping branches. These Concentric Pipe Reducer is use in various industries like chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications.Manufacturer Test Certificate as per EN 10204-3.1, EN 10204-3.2, NABL approved Lab Test Report, Third Party Inspection Report, 100% Radiography Test Report, Raw Materials Certificate etc.

Ready Stock of Concentric Reducer Pipe Fittings Export to

AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe

EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City

AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela

Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu

CONTACT

Please send us the complete details of Concentric Reducer ASME B16.9 and Eccentric Reducer, Concentric Reducer A234 WPB requirement. We offer Concentric Reducer Pipe Fittings which are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these Concentric Reducer at our valuable customers end. Buy ASME B16.9 Reducer at best price from us.

sales@metalfed.com | +91 9137898594 | Quotation Form | Reach Us

Exit mobile version
