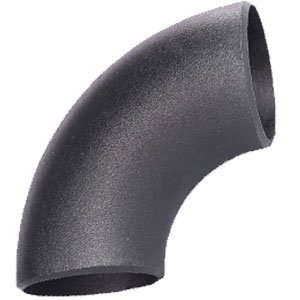

AISI 4340 Buttweld Fittings

AISI 4340 Buttweld Fittings Suppliers in India

SAE 4340 Pipe Fittings, Alloy Steel 4340 Pipe Fittings Exporter

Metalfed Engineering is a leading supplier, exporter and ,manufacturers of Buttweld Pipe Fittings. We are globally well known as the Best Quality Buttweld Fittings Suppliers. Our ASME B16.9 Fittings are available in an extensive range of mechanical applications. We are delivering Steel Buttweld Pipe Fittings in close tolerances, in addition to in greater finish standards and dense structures, which makes these to deliver best process support. We are stockist of Pipe Elbows, Concentric Reducers, Eccentric Reducers, End Caps, Stub Ends, and Tees. Buy Pipe Fittings online at best price.

We are largest exporters of ASME B16.9 Pipe Fittings and sets them up in a scope of outlines according to the procurement’s of our clients. Comprised of by utilizing exclusive requirement high quality material along side high machines and very advanced . Certified good quality of materials, These can further be custom-made in terms of sizes, shapes, and thicknesses as per the precise needs of our venerated buyer.

A Specialized Manufacturer of AISI 4340 Pipe Elbow, Alloy Steel SAE 4340 Tee, Cross, Bends, ASME B16.9 Alloy Steel 4340 Fittings, Reducer, Stub Ends, End Caps, Collar, Pipe Nipple in all Dimensions and Sizes.

Table of Content

AISI 4340 Pipe Fittings Specifications
AISI 4340 Pipe Fittings Chemical Composition
AISI 4340 Pipe Fittings Mechanical Properties
AISI 4340 Pipe Fittings Size Range
AISI 4340 Pipe Fittings Manufacturing Standards

AISI 4340 Pipe Fittings Dimensional Tolerances
AISI 4340 Pipe Fittings Dimensions
AISI 4340 Pipe Fittings Applications
AISI 4340 Pipe Fittings Exports to
SAE 4340 Buttweld Fittings Supply to
AISI 4340 Pipe Fittings Types and Prices

ASME B16.9 Buttweld Fittings Specification covers overall dimensions, ratings, tolerances, and testing. ASME B16.9 Fittings Specification for covers markings for factory-made wrought buttwelding fittings as well. This ANSI B16.9 specification covers ASME B16.9 Fittings Dimensions in the size range between NPS 1 ∕ 2 through NPS 48 (DN 15 through DN 1200). The Seamless Fittings also covers fittings of any producible wall thickness. While the specification covers all the above mentioned points the ASME B16.9 Material standard does not cover buttwelding fittings that are meant for low pressure corrosion resistant applications.

Value Added Services

Epoxy Coating
Electro Polish
Sand Blasting

Testing

Intergranular Corrosion Test
Tensile Test
Hardness Test

Features

Good load bearing capacity
Excellent versatility and weldability
High tensile strength

Largest Stockists of Alloy Steel SAE 4340 Seamless Pipe Fittings, AISI 4340 Welded Pipe Fittings, Equal Tee, 90 Degree Elbow, Long / Short Radius Elbow, Concentric Reducer, Lateral Tee, Reducing Crosat Best Prices.

AISI 4340 Buttweld Fittings Specifications

Product Name:	AISI 4340 Pipe Fittings / SAE 4340 Pipe Fittings
size:	Welded Butt Weld Fittings:1/2″ – 48″ Seamless Butt Weld Fittings: 1/2″ – 10″ in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Dimensions:	ASME/ANSI B16.9, MSS-SP-43, ASME B16.28, BS1560, BS4504, BS4504, BS10
Types:	Seamless / Welded / Fabricated
Thickness:	SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XS, XXS available with NACE MR 01-75
Bending Radius:	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Alloy Steel Pipe Fitting
Elbows:	Angle: 22.5 deg, 30 deg, 45 deg, 90 deg, 180 deg, 1D, 1.5D, 2D, 2.5D, 3D, 4D, 5D, 6D, 7D, 8D, 10D-40D. Standard: ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-75 JISB2311 JISB2312 JISB2313, DIN2605 GB, BS, ISO
Manufacturing process:	Forge, Cast, Push, Press, etc.
Key markets and industries:	Bitumen upgraders. Petrochemicals and acids. Heavy oil refineries. Nuclear power (largely seamless).
Test Certificates (TC):	Raw Materials Certificate, EN 10204/3.1B, 100% Radiography Test Report, Third Party Inspection Report, etc
Material Test Certificates (MTC):	As per EN 10204 3.1 and EN 10204 3.2, TC certifying NACE MR0103, NACE MR0175
Uses & Application:	Fittings To Connect Pipe & Tubes in Petroleum, Chemical, Power, Gas, Construction, Metallurgy, Shipbuilding. Schedule 10 fittings are an economical alternative for lower-pressure applications. Schedule 40 fittings have a thicker wall for higher-pressure applications.

AISI 4340 Pipe Fittings Chemical Composition

	C	Si	Mn	P	S	Cr	Ni	Mo	Fe
Min	0.38	0.15	0.60	–	–	0.70	1.65	0.20	0.00
Max	0.43	0.35	0.80	0.035	0.040	0.90	2.00	0.30	0.00

AISI 4340 Pipe Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.85 g/cm3	1416°C	655 MPa	140 GPa	13%

AISI 4340 Pipe Fittings Size Range

Below Mentioned Pipe Fitting Size: 1/2″ – 48″
AISI 4340 Elbow – Long Radius	SAE 4340 Stub Ends
Alloy Steel 4340 Elbow – Short Radius	Alloy Steel SAE 4340 Cross
Alloy Steel 4340 Reducing Elbow	Alloy Steel 4340 Reducing Cross
Alloy Steel 4340 45° Elbow	Alloy Steel AISI 4340 Tees
AISI 4340 Fabricated Tee	SAE/AISI 4340 End Cap
Alloy Steel AISI 4340 Reducer	Alloy Steel SAE 4340 Coupling
Alloy Steel AISI 4340 Concentric Reducer	Alloy Steel SAE 4340 Pipe Nipple
Alloy Steel AISI 4340 Eccentric Reducer	Alloy Steel SAE 4340 5D Elbow
Alloy Steel SAE/AISI 4340 3D Elbow	Alloy Steel 4340 Welded Pipe Fittings

AISI 4340 Buttweld Fittings Standards

German Steel Pipe Fittings Standard
Standard Name	Standard Code
Steel butt-welding pipe fittings.elbows and bends	DIN 2605
Steel butt-welding pipe fittings.tees	DIN 2615
Steel butt-welding pipe fittings.reducers	DIN 2616
Steel butt-welding pipe fittings.caps	DIN 2617
American Steel Pipe Fittings Standard
Forged Durimet pipe fittings	ANSI ASME SA-234
Factory-Made wrought steel pipe fittings	ANSI ASME B16.9
Wrought steel butt-welding short radius elbows and returns	ANSI ASME B16.28
Steel butt-welding fittings	ISO 5251
Alloy Steel butt-welding fittings	MSS SP-43
Forging butt-welding fittings	MSS SP-75
Russian Steel Pipe Fittings Standard
Carbon and low-alloy steel butt-welding fittings. Sharply curved bends type 3D (R=1,5 DN). Design	Gost17375
Carbon and low-alloy steel butt-welding fittings.Tees. Design	Gost17376
Carbon and low-alloy steel butt-weldings fittings. Sharply curved bends type 2D (R=DN). Design	Gost30753
Carbon and low-alloy steel butt-weldings. Reducers. Design	Gost17378
Carbon and low-alloy steel butt-welding fittings. Elliptical caps. Design	Gost17379
Carbon and low-alloy steel butt-weldings fittings. General specifications	Gost17380
Japanese Steel Pipe Fittings Standard
Universal steel butt-welding pipe fittings	JIS B2311
Steel butt-welding pipe fittings	JIS B2312
Steel plate butt-welding pipe fittings	JIS B2313
Other Steel Pipe Fittings Standard
3 Butt-welding pipe fittings	EN 1025

AISI 4340 Buttweld Fittings Dimensional Tolerances

Tolerances of butt weld fittings (in inches) according to ASME/ANSI B16.9. for all carbon alloy fittings except short radius elbows and returns (ASME/ANSI B16.28).

Buttweld Fittings ASME B16.9 Tolerance (Elbow, Cap, Tee, Reducer)				90 Deg. & 45 Deg. Elbow and Tee	Pipe Reducer & Lap Joint Stub End	Pipe Cap
Buttweld Fitting Dimension (NPS)	Outside Diameter at Bevel	Inside Diameter at End	WallThickness T	Center-to-End Dimension A ,C ,B	Over-all Length H	Over-all Length F
1/2 to 2-1/2	+0.06		Not less than 87.5% of nominal thickness	+/- 0.06	+/- 0.06	+/- 0.12
	-0.03
3 to 3-1/2	+/- 0.06	+/- 0.06		+/- 0.06	+/- 0.06	+/- 0.12

4	+/- 0.06	+/- 0.06		+/- 0.06	+/- 0.06	+/- 0.12

5 to 8	+/- 0.06	+/- 0.06		+/- 0.06	+/- 0.06	+/- 0.25

10 to 18	+0.16	+/- 0.12		+/- 0.09	+/- 0.09	+/- 0.25
	-0.12
20 to 24	+0.25	+/- 0.19		+/- 0.09	+/- 0.09	+/- 0.25
	-0.19
26 to 30	+0.25	+/- 0.19		+/- 0.12	+/- 0.19	+/- 0.38
	-0.19
32 to 48	+0.25	+/- 0.19		+/- 0.19	+/- 0.19	+/- 0.38
	-0.19

AISI 4340 Buttweld Fittings Dimensions

Dimensions and weights of ASME B16.9 Alloy Steel 4340 Buttweld 45 Degree Elbow, 90 Degree Elbows Short and Long Radius (NPS 1/2 to 24, schedule STD/XS)

Pipe Elbow Nominal Size		Pipe Elbow Outside Diameter Y	Wall Thickness T (Pipe Elbow Schedule)		45 Deg. Elbow LR Centre to Face B	45 Deg. Elbow LR Weight	90 Deg. Elbow LR Centre to Face A	90 Deg. Elbow LR Weight	90 Deg. Elbow SR Centre to Face A	90 Deg. Elbow SR Weight
mm	in	mm	mm	Schedule	mm	kg	mm	kg	mm	kg
15	1/2”	21.3	2.78	STD	15.9	0.04	38.1	0.08	–	–
			3.73	X.S	15.9	0.05	38.1	0.10	–	–
20	3/4”	26.7	2.87	STD	11.1	0.04	28.6	0.08	–	–
			3.91	X.S	11.1	0.05	28.6	0.11	–	–
25	1”	33.4	3.38	STD	22.2	0.09	38.1	0.15	25.4	0.11
			4.55	X.S	22.2	0.11	38.1	0.19	25.4	0.14
32	11/4”	42.2	3.56	STD	25.4	0.14	47.6	0.28	31.75	0.18
			4.85	X.S	25.4	0.2	47.6	0.39	31.75	0.24
40	11/2”	48.3	3.68	STD	28.6	0.2	57.1	0.4	38.1	0.26
			5.08	X.S	28.6	0.25	57.1	0.5	38.1	0.35
50	2”	60.3	3.91	STD	34.9	0.36	76.2	0.72	50.8	0.5
			5.54	X.S	34.9	0.5	76.2	1.0	50.8	0.68
65	21/2”	73.0	5.16	STD	44.4	0.73	95.2	1.46	63.5	0.95
			7.01	X.S	44.4	0.91	95.2	1.82	63.5	1.27
80	3”	88.9	5.49	STD	50.8	1.1	114.3	2.18	76.2	1.45
			7.62	X.S	50.8	1.45	114.3	2.86	76.2	1.95
100	4”	114.3	6.02	STD	63.5	2.1	152.4	4.2	101.6	2.8
			8.56	X.S	63.5	2.9	152.4	5.7	101.6	3.9
125	5”	141.3	6.65	STD	79.4	3.4	190.0	6.8	127.0	4.8
			9.5	X.S	79.4	5.0	190.0	10.0	127.0	6.5
150	6”	168.3	7.11	STD	95.2	5.1	229.0	10.1	152.4	6.8
			10.97	X.S	95.2	7.7	229.0	15.3	152.4	10.2
200	8”	219.1	8.18	STD	127.0	10.2	305.0	20.4	203.0	13.6
			12.7	X.S	127.0	15.5	305.0	30.9	203.0	20.9
250	10”	273.9	9.27	STD	159.0	18.1	381.0	36.1	254.0	24.1
			12.7	X.S	159.0	24.4	381.0	48.8	254.0	32.5
300	12”	323.9	9.52	STD	190.0	26.6	457.0	53.1	305.0	35.4
			12.7	X.S	190.0	35.0	457.0	70.0	305.0	46.7
350	14”	355.6	9.52	STD	222.0	34.1	533.0	68.1	356.0	45.4
			12.7	X.S	222.0	45.0	533.0	90.0	356.0	60.0
400	16”	406.4	9.52	STD	254.0	45.0	610.0	89.3	406.0	59.5
			12.7	X.S	254.0	59.0	610.0	118.0	406.0	78.7
450	18”	457.0	9.52	STD	286.0	56.5	686.0	113.0	457.0	75.6
			12.7	X.S	286.0	75.0	686.0	150.0	457.0	100.0
500	20”	508.0	9.52	STD	318.0	85.0	762.0	140.0	508.0	93.5
			12.7	X.S	318.0	112.5	762.0	186.0	508.0	124.0
600	24”	610.00	9.52	STD	381.0	101.5	914.0	203.0	610.0	135.0
			12.7	X.S	381.0	134.5	914.0	269.0	610.0	179.0

Dimensions and weights of ASME B16.9 Alloy Steel 4340 Buttweld Tee and Cap (NPS 1/2 to 24, schedule STD/XS)

Buttweld Tee and Cap Nominal Size		Pipe Tee and Cap Outside Diameter Y	Pipe Tee and Cap Wall Thickness T		Buttweld Tee Dimensions (C and M)	Buttweld Tee Weight	Buttweld Cap End to End	Buttweld Cap Weight
mm	in	mm	mm	Schedule	mm	mm	mm	kg
15	1/2”	21.3	2.78	STD	25.4	0.58
			3.73	X.S	25.4	0.21
20	3/4”	26.7	2.87	STD	28.6	0.21
			3.91	X.S	28.6	0.27
25	1”	33.4	3.38	STD	38.1	0.34	38.1	0.1
			4.55	X.S	38.1	0.43	38.1	0.14
32	11/4”	42.2	3.56	STD	47.6	0.64	38.1	0.14
			4.85	X.S	47.6	0.75	38.1	0.18
40	11/2”	48.3	3.68	STD	57.1	0.95	38.1	0.18
			5.08	X.S	57.1	1.13	38.1	0.23
50	2”	60.3	3.91	STD	63.5	1.45	38.1	0.27
			5.54	X.S	63.5	1.72	38.1	0.32
65	21/2”	73.0	5.16	STD	76.2	2.45	38.1	0.41
			7.01	X.S	76.2	2.95	38.1	0.45
80	3”	88.9	5.49	STD	85.7	3.45	50.8	0.64
			7.62	X.S	85.7	4.3	50.8	0.82
100	4”	114.3	6.02	STD	105.0	5.7	63.5	1.13
			8.56	X.S	105.0	7.3	63.5	1.54
125	5”	141.3	6.65	STD	124.0	9.1	76.2	1.91
			9.5	X.S	124.0	11.8	76.2	2.59
150	6”	168.3	7.11	STD	143.0	13.6	88.9	2.95
			10.97	X.S	143.0	19.0	88.9	4.1
200	8”	219.1	8.18	STD	178.0	25.0	101.6	5.0
			12.7	X.S	178.0	33.5	101.6	7.3
250	10”	273.0	9.27	STD	216.0	41.0	127.0	9.1
			12.7	X.S	216.0	54.0	127.0	12.0
300	12”	323.9	9.52	STD	254.0	57.0	152.4	13.6
			12.7	X.S	254.0	77.0	152.4	17.0
350	14”	355.6	9.52	STD	279.0	73.0	165.1	15.9
			12.7	X.S	279.0	93.0	165.1	21.0
400	16”	406.4	9.52	STD	305.0	91.0	178.8	20.0
			12.7	X.S	305.0	120.0	178.8	26.0
450	18”	457.0	9.52	STD	343.0	127.0	203.2	26.0
			12.7	X.S	343.0	165.0	203.2	34.0
500	20”	508.0	9.52	STD	381.0	227.0	228.6	33.0
			12.7	X.S	381.0	270.0	228.6	43.0
600	24”	610.0	9.52	STD	432.0	345.0	266.7	46.0
			12.7	X.S	432.0	430.0	266.7	61.0

Dimensions and Weights of ASME B16.9 Alloy Steel 4340 Buttweld Concentric Reducers and Eccentric Reducers(NPS 1/2 to 24, schedule STD/XS)

Buttweld Reducer Nominal Size		Pipe Reducer Length H	Pipe Reducer Schedule T	Pipe Reducer Weight
mm	in	mm		Kg
20×15	3/4” x 1/2”	38.1	STD	0.07
			XS	0.1
25×15	1” x 1/2”	50.8	STD	0.14
			X.S	0.18
25×20	1” x 3/4”	50.8	STD	0.14
			X.S	0.18
32×15	11/4” x 1/2”	50.8	STD	0.18
			X.S	0.23
32×20	11/4” x 3/4“	50.8	STD	0.18
			X.S	0.23
32×25	11/4” x 1”	50.8	STD	0.18
			X.S	0.23
40×15	11/2” x 1/2”	63.5	STD	0.27
			X.S	0.32
40×20	11/2” x 3/4”	63.5	STD	0.27
			X.S	0.32
40×25	11/2” x 1”	63.5	STD	0.27
			X.S	0.32
40×32	11/2” x 11/4”	63.5	STD	0.27
			X.S	0.32
50×15	2” x 1/2”	76.2	STD	0.41
			X.S	0.54
50×20	2” x 3/4”	76.2	STD	0.41
			X.S	0.54
50×25	2”x1”	76.2	STD	0.41
			X.S	0.54
50×32	2” x 11/4”	76.2	STD	0.41
			X.S	0.54
50×40	2” x 11/2”	76.2	STD	0.41
			X.S	0.54
65×25	21/2” x 1”	88.9	STD	0.68
			X.S	0.91
65×32	21/2” x 11/4”	88.9	STD	0.68
			X.S	0.91
65×40	21/2” x 11/2”	88.9	STD	0.68
			X.S	0.91
65×50	21/2” x 2”	88.9	STD	0.68
			X.S	0.91
80×40	3” x 11/2”	88.9	STD	0.77
			X.S	1.09
80×50	3”x2”	88.9	STD	0.91
			X.S	1.22
80×65	3” x 21/2”	88.9	STD	0.91
			X.S	1.27
100×40	4” x 11/2”	101.6	STD	1.36
			X.S	1.91
100×50	4”x2”	101.6	STD	1.40
			X.S	1.95
100×65	4” x 21/2”	101.6	STD	1.45
			X.S	2.04
100×80	4”x3”	101.6	STD	1.59
			X.S	2.08
125×80	5”x3”	127.0	STD	2.5
			X.S	3.4
125 x 100	5”x4”	127.0	STD	2.7
			X.S	3.8
150×50	6”x2”	140.0	STD	3.4
			X.S	4.3
150×65	6” x 21/2”	140.0	STD	3.4
			X.S	4.5
150×80	6”x3”	140.0	STD	3.6
			X.S	4.8
150 x 100	6”x4”	140.0	STD	3.7
			X.S	5.2
150 x 125	6”x5”	140.0	STD	3.9
			X.S	5.4
200×80	8”x3”	152.4	STD	4.5
			X.S	7.2
200 x 100	8”x4”	152.4	STD	5.0
			X.S	7.7
200 x 125	8”x5”	152.4	STD	5.4
			X.S	8.2
200 x 150	8”x6”	152.4	STD	5.9
			X.S	8.6
250 x 100	10”x4”	178.0	STD	9.1
			X.S	11.8
250 x 125	10”x5”	178.0	STD	9.5
			X.S	13.6
250 x 150	10”x6”	178.0	STD	9.5
			X.S	13.6
250 x 200	10”x8”	178.0	STD	10.0
			X.S	14.0
300 x 150	12”x6”	203.0	STD	14.1
			X.S	18.1
300 x 200	12”x8”	203.0	STD	14.5
			X.S	19.1
300 x 250	12” x 10”	203.0	STD	15.4
			X.S	20.0
350 x 200	14”x8”	330.0	STD	26.3
			X.S	34.9
350 x 250	14” x 10”	330.0	STD	27.2
			X.S	36.3
350 x 300	14” x 12”	330.0	STD	28.6
			X.S	37.6
400 x 200	16”x8”	356.0	STD	31.8
			X.S	42.6
400 x 250	16” x 10”	356.0	STD	33.1
			X.S	43.5
400 x 300	16” x 12”	356.0	STD	34.5
			X.S	45.4
400 x 350	16” x 14”	356.0	STD	35.4
			X.S	46.3
450 x 250	18” x 10”	381.0	STD	38.0
			X.S	52.1
450 x 300	18” x 12”	381.0	STD	39.0
			X.S	53.5
450 x 350	18” x 14”	381.0	STD	40.0
			X.S	54.9
450 x 400	18” x 16”	381.0	STD	40.8
			X.S	53.5
500 x 250	20” x 10”	508.0	STD	53.0
			X.S	79.9
500 x 300	20” x 12”	508.0	STD	54.4
			X.S	82.0
500 x 350	20” x 14”	508.0	STD	57.6
			X.S	80.2
500 x 400	20” x 16”	508.0	STD	58.9
			X.S	82.0
500 x 450	20” x 18”	508.0	STD	61.7
			X.S	82.0
600 x 300	24” x 12”	508.0	STD	63.5
			X.S	84.4
600 x 350	24” x 14”	508.0	STD	65.3
			X.S	86.8
600 x 400	24” x 16”	508.0	STD	68.0
			X.S	90.4
600 x 450	24” x 18”	508.0	STD	72.6
			X.S	96.5
600 x 500	24” x 20”	508.0	STD	77.1
			X.S	102.5

AISI 4340 Buttweld Fittings Types

Note: Prices are based on product, material grade and quantity. Contact us anytime to get full quotation.

GET UPDATED PRICE AND COMPLETE QUOTATION WITHIN AN HOUR sales@metalfed.com

AISI 4340 Buttweld Pipe Fittings – Applications & Industries

Oil & Gas Industries

Gas Processing Industries

Food Processing Industries

Petrochemical Industries

Chemical Industries

Power Generation Industries

Sugar Industries

Fertilizers Industries

We are well-known prestigious Manufacturers, Exporters, and Suppliers of high quality Alloy Steel AISI 4340 Buttweld Pipe Fittings. We supply ANSI B16.9 SAE 4340 Pipe Fittings to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications. Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.

Ready Stock of AISI 4340 Pipe Fittings Export to

ASIA: India, Indonesia, Japan, Malaysia,Bangladesh, Cambodia, Maldives, Myanmar, Singapore, South Korea, Vietnam, Sri Lanka, Taiwan, Thailand.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
NORTH AMERICA: Costa Rica, Bahamas, Canada,Denmark, Jamaica, Mexico, Panama, Trinidad And Tobago, Puerto Rico, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.

AISI 4340 Buttweld Fittings Supplier

Ahmedabad, Al Jubail, Al Khobar, Aberdeen, Abu Dhabi, Ahvaz, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan,Calgary, Caracas, Chandigarh, Cairo, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Doha, Dubai,Dallas, Dammam, Ernakulam,Edmonton, Faridabad, Gurgaon, Geoje-si, Gimhae-si, Granada, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Mexico City, Milan, Melbourne, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney,Thiruvananthapuram, Toronto, Tehran, Thane, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

CONTACT

Please send us the complete details of AISI 4340 Buttweld Pipe Fittings requirement. We offer Alloy Steel SAE 4340 Pipe Fittings which are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these Buttweld Elbow, Tee, Reducer, Bend, Cross, End Caps, Stub Ends, Coller, Pipe Nipple at our valuable customers end. Buy AISI 4340 Pipe Fittingat a cheap price from us.

sales@metalfed.com | +91 9137898594 | Quotation Form | Reach Us
