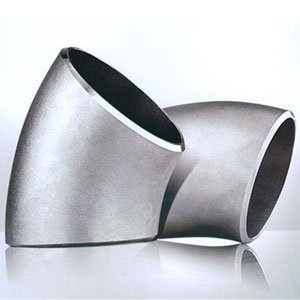

Elbow 45 Degree, ASME B16.9 45 Degree Elbow, Long Radius 45 Degree Elbow Manufacturer
Metalfed Engineering is prominent supplier and exporter of 45 Degree Elbow. We well-known as ASME B16.9 45 Degree Elbows Suppliers because of their durability and design. We supply these Long Radius 45 Degree Elbow and 45 Degree Short Radius Elbow in various sizes, shapes, and dimensions. We consider our client’s needs and focus on offering them efficient and accurate Elbow 45 Degree at a cost-effective price.
We are exporting ANSI B16.9 45 Degree Elbow which manufactured by using the high quality of raw materials after well tested and quality assured. We are developing these 45 Deg elbows under the supervision of skilled professionals that are having excellent knowledge of development. We are offering ASME B16.9 45 Degree Elbows that is anti-corrosive, highly reliable, durable, and robust with perfect dimensional accuracy.
We have stock of these Buttweld 45 Degree Elbow in long radius and short radius version. The centre to face distance for a long radius is nominal pipe size, while the centre to face distance for 45 Degree SR Elbow even is to nominal pipe size.The radius of both the 45 Degree and 45 Degree long and short elbow is the same however, the centre to face dimension is not equivalent due to the smaller degree of bend.
Check Short Radius 45 Degree Dimensions, 45 Degree SR Elbow, 1 inch 45 Degree Elbow , 45 Degree Weld Elbow, 45 Degree Long Radius Elbow Price in India.
The function of a 45 Degree Long Radius Elbow is same as 45 Degree long and short elbow, but the measurement and dimensions is different to that of a 45 Degree long and the short elbow. 45 Degree Weld Elbow in accordance with the national and international quality standards and offerat best prices to our valuable clients.During the testing process, various qualitative parameters of ANSI B16.9 Elbows are verified by our quality controllers.
We are using conventional shipping and packaging methods to offer damage-free delivery of Pipe Elbow 45 Degree before the delivery deadline provided by our esteem customers. Before the packaging and delivery of this Buttweld 45 Degree elbow, We conduct so many destructive and non-destructive quality check tests. We have huge stock of Elbow 45 Degree for emergency requirements. Contact us to get 45 Degree Elbow Price in India.
Reputed Exporter of Butt weld Elbow 45 Degree, 15mm 45 Degree Elbow, Long Radius 45° Pipe Elbow, ASME B16.28 45 Degree Elbow, 4 inch 45 Degree Elbow, 45 Degree Pipe Elbow in all sizees and dimensions.
Buttweld 45 Degree Elbow Specifications
Dimension
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43.
Size
1/2″NB TO 48″NB IN.
Form
½”45° Long Radius Elbow, Butt weld 45° Short Radius Elbow.
Thickness
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Type
Welded / ERW / Welded / Fabricated
45 Degree Elbow Dimensions
ASME B16.9 45 Degree Elbow Dimensions, 45 Degree Elbow Sizes
| NPS | O.D. D |
45° Long Rad Center to End B |
45° 3D Center to End B |
| 1/2 | 21.3 | 16 | |
| 3/4 | 26.7 | 19 | 24 |
| 1 | 33.4 | 22 | 31 |
| 1¼ | 42.2 | 25 | 39 |
| 1½ | 48.3 | 29 | 47 |
| 2 | 60.3 | 35 | 63 |
| 2½ | 73 | 44 | 79 |
| 3 | 88.9 | 51 | 95 |
| 3½ | 101.6 | 57 | 111 |
| 4 | 114.3 | 64 | 127 |
| 5 | 141.3 | 79 | 157 |
| 6 | 168.3 | 95 | 189 |
| 8 | 219.1 | 127 | 252 |
| 10 | 273 | 159 | 316 |
| 12 | 323.8 | 190 | 378 |
| 14 | 355.6 | 222 | 441 |
| 16 | 406.4 | 254 | 505 |
Elbow 45 Degree Long Radius Dimensions
| NPS | O.D. D |
45° Long Rad Center to End B |
45° 3D Center to End B |
| 18 | 457 | 286 | 568 |
| 20 | 508 | 318 | 632 |
| 22 | 559 | 343 | 694 |
| 24 | 610 | 381 | 757 |
| 26 | 660 | 406 | 821 |
| 28 | 711 | 438 | 883 |
| 30 | 762 | 470 | 946 |
| 32 | 813 | 502 | 1010 |
| 34 | 864 | 533 | 1073 |
| 36 | 914 | 565 | 1135 |
| 38 | 965 | 600 | 1200 |
| 40 | 1016 | 632 | 1264 |
| 42 | 1067 | 660 | 1326 |
| 44 | 1118 | 695 | 1389 |
| 46 | 1168 | 727 | 1453 |
| 48 | 1219 | 759 | 1516 |
Short Radius 45 Degree Elbow Dimensions
| Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
| F | OD | ID | T | |||
| STANDARD WEIGHT | ||||||
| 1/2 | 40 | 5/8 | 0.840 | 0.622 | 0.109 | 0.1 |
| 3/4 | 40 | 7/16 | 1.050 | 0.824 | 0.113 | 0.1 |
| 1 | 40 | 7/8 | 1.315 | 1.049 | 0.133 | 0.2 |
| 1 1/4 | 40 | 1 | 1.660 | 1.380 | 0.140 | 0.4 |
| 1 1/2 | 40 | 1 1/8 | 1.900 | 1.610 | 0.145 | 0.5 |
| 2 | 40 | 1 3/8 | 2.375 | 2.067 | 0.154 | 0.9 |
| 2 1/2 | 40 | 1 3/4 | 2.875 | 2.469 | 0.203 | 1.5 |
| 3 | 40 | 2 | 3.500 | 3.068 | 0.216 | 2.5 |
| 3 1/2 | 40 | 2 1/4 | 4.000 | 3.548 | 0.226 | 3.5 |
| 4 | 40 | 2 1/2 | 4.500 | 4.026 | 0.237 | 4.8 |
| 5 | 40 | 3 1/8 | 5.563 | 5.047 | 0.258 | 7.8 |
| 6 | 40 | 3 3/4 | 6.625 | 6.065 | 0.280 | 12 |
| 8 | 40 | 5 | 8.625 | 7.981 | 0.322 | 23 |
| 10 | 40 | 6 1/4 | 10.750 | 10.020 | 0.365 | 42 |
| 12 | – | 7 1/2 | 12.750 | 12.000 | 0.375 | 61 |
| 14 | 30 | 8 3/4 | 14.000 | 13.250 | 0.375 | 79 |
| 16 | 30 | 10 | 16.000 | 15.250 | 0.375 | 103 |
| 18 | – | 11 1/4 | 18.000 | 17.250 | 0.375 | 132 |
| 20 | 20 | 12 1/2 | 20.000 | 19.250 | 0.375 | 160 |
| 22 | 20 | 13 1/2 | 22.000 | 21.250 | 0.375 | 195 |
| 24 | 20 | 15 | 24.000 | 23.250 | 0.375 | 238 |
| EXTRA STRONG 45 DEGREE SR ELBOW | ||||||
| Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
| F | OD | ID | T | |||
| 1/2 | 80 | 5/8 | 0.840 | 0.546 | 0.147 | 0.2 |
| 3/4 | 80 | 7/16 | 1.050 | 0.742 | 0.154 | 0.3 |
| 1 | 80 | 7/8 | 1.315 | 0.957 | 0.179 | 0.4 |
| 1 1/4 | 80 | 1 | 1.660 | 1.278 | 0.191 | 0.5 |
| 1 1/2 | 80 | 1 1/8 | 1.900 | 1.500 | 0.200 | 0.6 |
| 2 | 80 | 1 3/8 | 2.375 | 1.939 | 0.218 | 1.1 |
| 2 1/2 | 80 | 1 3/4 | 2.875 | 2.323 | 0.276 | 2.1 |
| 3 | 80 | 2 | 3.500 | 2.900 | 0.300 | 3.5 |
| 3 1/2 | 80 | 2 1/4 | 4.000 | 3.364 | 0.318 | 4.8 |
| 4 | 80 | 2 1/2 | 4.500 | 3.826 | 0.337 | 6.5 |
| 5 | 80 | 3 1/8 | 5.563 | 4.813 | 0.375 | 11 |
| 6 | 80 | 3 3/4 | 6.625 | 5.761 | 0.432 | 18 |
| 8 | 80 | 5 | 8.625 | 7.625 | 0.500 | 35 |
| 10 | 60 | 6 1/4 | 10.750 | 9.750 | 0.500 | 56 |
| 12 | – | 7 1/2 | 12.750 | 11.750 | 0.500 | 80 |
| 14 | – | 8 3/4 | 14.000 | 13.000 | 0.500 | 100 |
| 16 | 40 | 10 | 16.000 | 15.000 | 0.500 | 131 |
| 18 | – | 11 1/4 | 18.000 | 17.000 | 0.500 | 172 |
| 20 | 30 | 12 1/2 | 20.000 | 19.000 | 0.500 | 210 |
| 22 | 30 | 13 1/2 | 22.000 | 21.000 | 0.500 | 259 |
| 24 | – | 15 | 24.000 | 23.000 | 0.500 | 302 |
45 Degree Elbow Weight Chart
Elbow 45 Degree ASME B16.9 Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by client.
| WEIGHTS OF 45 DEGREE ELBOW FITTINGS | ||||||||
| NPS inches |
ELBOWS LR 45° |
ELBOWS SR 45° |
||||||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
| 18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
| 20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
| 24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
| Approximate weights in kg, density 8 kg/dm3 | ||||||||
Buttweld 45 Degree Elobow Weight in LBS and KG
| TYPE | SCHEDULE STD | SCHEDULE XS | ||
| NPS | LBS | KG | LBS | KG |
| 1/2 | 0.09 | 0.04 | 0.19 | 0.09 |
| 3/4 | 0.09 | 0.04 | 0.19 | 0.09 |
| 1 | 0.25 | 0.11 | 0.31 | 0.14 |
| 1 ¼ | 0.38 | 0.17 | 0.5 | 0.23 |
| 1 ½ | 0.4 | 0.18 | 0.69 | 0.31 |
| 2 | 0.81 | 0.37 | 1.19 | 0.54 |
| 2 ½ | 1.75 | 0.79 | 2.13 | 0.97 |
| 3 | 2.63 | 1.19 | 3.5 | 1.59 |
| 3 ½ | 3.5 | 1.59 | 4.5 | 2.04 |
| 4 | 4.5 | 2.04 | 6.1 | 2.77 |
| 5 | 7.5 | 3.4 | 10.7 | 4.85 |
| 6 | 12 | 5.44 | 17.5 | 7.94 |
| 8 | 23 | 10.43 | 35 | 15.88 |
| 10 | 43 | 19.5 | 53 | 24.04 |
| 12 | 62 | 28.12 | 84 | 38.1 |
| 14 | 80 | 36.29 | 100 | 45.36 |
| 16 | 100 | 45.36 | 135 | 61.23 |
| 18 | 126 | 57.15 | 167 | 75.75 |
| 20 | 160 | 72.57 | 206 | 93.44 |
| 22 | 197 | 89.36 | 260 | 117.93 |
| 24 | 238 | 107.95 | 300 | 136.08 |
| 26 | 275 | 124.74 | 365 | 165.56 |
| 30 | 367 | 166.47 | 488 | 221.35 |
| 36 | 531 | 240.86 | 706 | 320.24 |
DIMENSIONAL TOLERANCES OF ASME B16.9 BUTTWELD 45 DEGREE ELBOWS – LR & 3D
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 |
| Outside Diameter at Bevel (D) |
+ 1.6 – 0.8 |
1.6 | 1.6 | + 2.4 – 1.6 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 |
| Center to End LR (A/B) | 2 | 2 | 2 | 2 |
| Center to End 3D (A/B) | 3 | 3 | 3 | 3 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 – 3.2 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Inside Diameter at End | 3.2 | 4.8 | + 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Center to End LR (A/B) | 2 | 2 | 3 | 5 |
| Center to End 3D (A/B) | 3 | 3 | 6 | 6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||
| Angularity Tolerances of ANSI B16.9 45 Deg Elbow | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
45 Degree Center Formula, 45 Degree Elbow Fabrication Formula
Formula for calculating center to end distance of such 45 Degree elbows is as follows:
Elbow length in mm = Tan(Elbow Angle/2) X Elbow Radius in mm
Where: Generally these custom elbow angles from 45 degree to 90 are cut from 90 degree standard elbow. But for custom elbow angles smaller than 45 degree, elbow is normally cut from existing standard 45 degree elbow. Center to end dimension given in dimension tables for 45 deg elbow must be divided by Tan(22.5) to get elbow radius for standard elbow 45 degree . Then we can use above formula to get elbow angle for custom degrees.
ASME B 16.9 45 Deg Elbow Types
- 45 Degree Weld Elbow
- Elbow 45 Degree
- Buttweld 45 Deg Elbow
- Elbow 45 Degree Short Radius
- Long Radius 45 Deg Elbow
- ASME B16.28 45 Deg Elbow
- Buttweld Seamless 45 Deg Elbow
- JIS B2313 Buttweld 45 Deg Elbow
- Buttweld 45 Degree Elbow Take Off
- 45 Degree Pipe Elbow
- 15mm 45 Degree Elbow
- ASME B16.9 45 Deg Elbow
- Short Radius 45 Degree Elbow
- Elbow 45 Degree Long Radius
- MSS-SP-43 45 Deg Elbow
- 45 Deg SR Elbow
- JIS B2312 45 Deg Elbow Pipe Fittings
- Fabricated 45 Deg Elbow Pipe
45 degree elbow
The thickness of a 45-degree elbow depends on the size and material of the pipe. Generally, the thickness of a 45-degree elbow is the same as the thickness of the pipe it is connecting to. It is essential to consult the manufacturer’s specifications for exact measurements.
A 45 degree bend is used in piping systems to change the direction of the flow of liquids or gases. It is often used in HVAC systems, plumbing, and industrial applications. A 45 degree bend is useful when a gradual change in direction is needed to prevent turbulence or to fit the pipe around obstacles.
A 45-degree elbow is a type of pipe fitting that allows you to change the direction of the piping by 45 degrees. It is commonly used in plumbing, HVAC, and industrial applications.
The main difference between a 45 degree and 90 degree elbow is the angle of the bend. A 45 degree elbow allows for a gradual change in direction, while a 90 degree elbow provides a sharper turn. A 45 degree elbow is used when a more gradual turn is needed, while a 90 degree elbow is used when a sharper turn is required.
LR and SR refer to the centerline radius of the elbow. LR stands for a long radius, and SR stands for a short radius. A long-radius 45-degree elbow has a larger centerline radius than a short-radius 45-degree elbow. The long-radius elbow provides less frictional resistance to the flow of fluids and gases and is therefore used more commonly than the short-radius elbow. However, the short-radius elbow is more compact and easier to install in tight spaces.
ASME B 16.9 45 Deg Elbow – Applications & Industries
Oil & Gas Industries
Gas Processing Industries
Food Processing Industries
Petrochemical Industries
Chemical Industries
Power Generation Industries
Sugar Industries
Fertilizers Industries
We supply Elbow 45 Degree to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications.Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.We are reputed exporter and supplier of high quality 45 Degree long radius elbows, 45 Degree short radius elbows.
Ready Stock of 45 Degree Elbow Fittings Export to
AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe
EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City
AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela
Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu
Please send us the complete details of 45 Degree Elbow requirement.Our offered Elbow 45 Degree, and Elbow 45 Degree Long Radius are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these Elbow 45 Degree Short Radius at our valuable customers end. Buy 45 Degree Pipe Elbow at lowest price from us.
