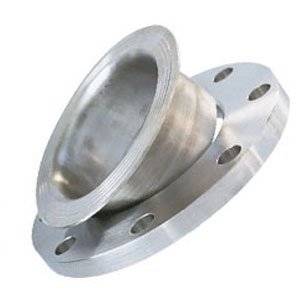

ASME / ANSI B16.5 Lap Joint Flange, ASME B16.47 Raised Lap Joint, Lapped Flange, Loose Flange Dimensions
We as Metalfed Engineering are a prominent manufacturer and seller of Lap Joint Flanges, which is an extremely tough and ductile alloy that has excellent corrosion resistance. More nickel in these Lapped Flange increases ductility and makes the finished product stronger, especially in acidic environments. Stainless Steel Lap Joint Flanges are covered by a variety of constructions or the use of equipment from these alloys for specific conditions. ASME B16.5 Loose Flange has excellent properties such as hardness, durability, corrosion resistance, and so on. Raised Lapped Joint flange is a strong, ductile alloy that has comparable corrosion resistance, is non-magnetic, and does not harden with heat treatment. Carbon Steel Lapped Flanges austenitic, non-magnetic, extremely tough and ductile, and is one of the most common and heat-resistant chromium-nickel steels.
EN 1092-1 Lap Joint Blind Flange offers high strength and lightweight, easy cleaning, a wide range of product shapes, and protection against contamination. A higher percentage of chromium, one of the main components of these Alloy Steel Lap Joint Flanges, improves the corrosion resistance of the end product. Such flanges should be forged after heated up to 2100 degrees F / 2300 degrees F and not forged below 1700 degrees F.
Well-known Manufacturer of Lapped Joint Flange, Lap Joint Backing Flange, Table E Lap Joint Flange, EN 1092-1 Lap Joint Blind Flange, JIS 10k Lap Joint Flange, Loose Flange PN16, DIN 2642 Lap Joint Loose Flange in all Dimensions.
ANSI B16.5 Lapped Flange has a wide range of general uses, such as in food and beverage, sanitary, cryogenic and pressure-retaining applications. The hardness of these Super Duplex Steel Lapped Flanges varies similarly, from relatively soft annealed austenitic steel to extremely hard martensitic material such as that used for razor blades or ball bearings.
Huge Stockholder & Exporter of ANSI B16.5 Class 150#, 300#, 600#, 900#, 1500#, 2500# Lap Joint Flanges, Large Diameter Lap Joint Flange, Lap Joint Weld Neck Flange, Copper Nickel Lap Joint Ring Flange RTJ/FF/RF, Lap Joint Flange PN16 PN10 at Best Prices.
ASME B16.5 / ASME B16.47 Lap Joint Flange Specifications
| Product Name: | Lap Joint Flange | Loose Flange | Lapped Flange |
| Size Chart: | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Dimensions: | ANSI / ASME B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Rating ANSI: | Class 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN: | PN6 PN10 PN16 PN25 PN40 PN64 / 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Connection Type/Flange Face Type: | RF-Raised Face, RTJ-Ring Type Joint, FF-Flat Face, LMF-Large Male-Female, LJF-Lap-Joint Face, SMF-Small Male-Female, Small Tongue, Large Tongue & Groove, Groove |
| Custom Flange/Special Design: | As per your drawing |
| Standards: | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, ASME/ANSI B16.5/16.36/16.47A/16.47B, GOST Flange, MSS SP44, ISO70051, BS1560-3.1, JISB2220, API7S-43, API7S-15, API605, EN1092 |
| Flange Test: | Direct-reading Spectrograph, X-ray detector, Hydrostatic testing machine, UI trasonic flaw detector, Magnetic particle detector |
| Flanges Equipment: | Press machine, Pushing Machine, Bending machine, electric bevelling machine, Sand-blasting machine, etc |
| Manufacturers of: | DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British Standard (BS) ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ASTM A182 Lap Joint Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Test Certificates: | Third Party Inspection Report, 100% Radiography Test Report, Raw Materials Certificate, EN 10204/3.1B, etc. |
| Material Test Certificates (MTC): | As per EN 10204 3.1 and EN 10204 3.2, TC certifying NACE MR0103, NACE MR0175 |
| Uses & Applications: | Petrochemicals and acids, Nuclear Power, Heavy oil refineries, Bitumen upgraders, Offshore, Piping Projects etc. |
| Export Network: | Ireland, Oman, Dubai, Indonesia, Egypt, Singapore, Saudi & Arabia, Iran, Ukraine, Canada, USA, Brazil, Spain, Thailand, Korea, India, Peru, etc |
Lap Joint Flange Materials and Grades
| Duplex Steel Lap Joint Flange: | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 |
| Super Duplex Lap Joint Flange: | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel Lap Joint Flange: | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
| Nickel Alloys Lap Joint Flange: | ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
| Alloys Lap Joint Flange: | Alloy 20, Alloy C, Alloy C276, Alloy B2 |
| Carbon Steel Lap Joint Flange: | STM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52 |
| Copper Alloys Lap Joint Flange: | ASTM SB 61, SB62, SB151, SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
| Low Temperature Steel Lap Joint Flange: | ASTM A350 LF2, LF3, LF6 |
| High Yield Lap Joint Flange: | ASTM A694 F42, F52, F60, F65, F70 |
| Alloy Steel Lap Joint Flange: | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Titanium Lap Joint Flange: | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Brass Lap Joint Flange: | 2604 / 3602 / H59 / H62 / etc. |
| Aluminium Lap Joint Flange: | 2017 / 5052 / 6063 / 6061 / 7075 etc. |
| Alloy 20 Lap Joint Flange: | ASME SB462 / ASTM B462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Nimonic Lap Joint Flange: | Nimonic 80A, Nimonic 75, Nimonic 90 |
| 254 SMO Lap Joint Flange: | ASME SA182 / ASTM A182, SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Other Lap Joint Flange Material: | Tin bronze, Alumunum bronze, Lead bronze |
ASME B16.5 Lapped Flange Dimensions
Class 150 Lap Joint Flange Dimensions
| DRILLING | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NOMINAL BORE | DIA. (D) |
THICK. (E) |
DIA. (B) |
DIA. (A) |
HEIGHT (H) |
NBR | HOLES | DIA. (C) |
|
| 1/2″ | 90 | 11.2 | 30 | 22.9 | 16 | 4 | 15.87 | 60.3 | |
| 3/4″ | 100 | 12.7 | 38 | 28.2 | 16 | 4 | 15.87 | 69.9 | |
| 1″ | 110 | 14.3 | 49 | 34.9 | 17 | 4 | 15.87 | 79.4 | |
| 1 1/4″ | 115 | 15.9 | 59 | 43.7 | 21 | 4 | 15.87 | 88.9 | |
| 1 1/2″ | 125 | 17.5 | 65 | 50.0 | 22 | 4 | 15.87 | 98.4 | |
| 2″ | 150 | 20.7 | 78 | 62.5 | 25 | 4 | 19.05 | 120.7 | |
| 2 1/2″ | 180 | 22.3 | 90 | 75.4 | 29 | 4 | 19.05 | 139.7 | |
| 3″ | 190 | 23.9 | 108 | 91.4 | 30 | 4 | 19.05 | 152.4 | |
| 3 1/2″ | 215 | 23.9 | 122 | 104.1 | 32 | 8 | 19.05 | 177.8 | |
| 4″ | 230 | 23.9 | 135 | 116.8 | 33 | 8 | 19.05 | 190.5 | |
| 5″ | 255 | 23.9 | 164 | 144.4 | 36 | 8 | 22.22 | 215.9 | |
| 6″ | 280 | 25.4 | 192 | 171.4 | 40 | 8 | 22.22 | 241.3 | |
| 8″ | 345 | 28.6 | 246 | 222.2 | 44 | 8 | 22.22 | 298.5 | |
| 10″ | 405 | 30.2 | 305 | 277.4 | 49 | 12 | 25.40 | 362.0 | |
| 12″ | 485 | 31.8 | 365 | 328.2 | 56 | 12 | 25.40 | 431.8 | |
| 14″ | 535 | 35.0 | 400 | 360.2 | 79 | 12 | 28.57 | 476.3 | |
| 16″ | 595 | 36.6 | 457 | 411.2 | 87 | 16 | 28.57 | 539.8 | |
| 18″ | 635 | 39.7 | 505 | 462.3 | 97 | 16 | 31.75 | 577.9 | |
| 20″ | 700 | 42.9 | 559 | 514.4 | 103 | 20 | 31.75 | 635.0 | |
| 24″ | 815 | 47.7 | 663 | 616.0 | 111 | 20 | 34.92 | 749.3 | |
Note: The dimensions are in millimeters
Class 300 Lap Joint Flange Dimensions
| DRILLING | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NOMINAL BORE | DIA. (D) |
THICK. (E) |
DIA. (B) |
DIA. (A) |
HEIGHT (H) |
NBR | HOLES | DIA. (C) |
|
| 1/2″ | 95 | 14.3 | 38 | 22.9 | 22 | 4 | 15.87 | 66.7 | |
| 3/4″ | 115 | 15.9 | 48 | 28.2 | 25 | 4 | 19.05 | 82.6 | |
| 1″ | 125 | 17.5 | 54 | 34.9 | 27 | 4 | 19.05 | 88.9 | |
| 1 1/4″ | 135 | 19.1 | 64 | 43.7 | 27 | 4 | 19.05 | 98.4 | |
| 1 1/2″ | 155 | 20.7 | 70 | 50.0 | 30 | 4 | 22.22 | 114.3 | |
| 2″ | 165 | 22.3 | 84 | 62.5 | 33 | 8 | 19.05 | 127.0 | |
| 2 1/2″ | 190 | 25.4 | 100 | 75.4 | 38 | 8 | 22.22 | 149.2 | |
| 3″ | 210 | 28.6 | 117 | 91.4 | 43 | 8 | 22.22 | 168.3 | |
| 3 1/2″ | 230 | 30.2 | 133 | 104.1 | 44 | 8 | 22.22 | 184.2 | |
| 4″ | 255 | 31.8 | 146 | 116.8 | 48 | 8 | 22.22 | 200.0 | |
| 5″ | 280 | 35.0 | 178 | 144.4 | 51 | 8 | 22.22 | 235.0 | |
| 6″ | 320 | 36.6 | 206 | 171.4 | 52 | 12 | 22.22 | 269.9 | |
| 8″ | 380 | 41.3 | 260 | 222.2 | 62 | 12 | 25.40 | 330.2 | |
| 10″ | 445 | 47.7 | 321 | 277.4 | 95 | 16 | 28.57 | 387.4 | |
| 12″ | 520 | 50.8 | 375 | 328.2 | 102 | 16 | 31.75 | 450.8 | |
| 14″ | 585 | 54.0 | 425 | 360.2 | 111 | 20 | 31.75 | 514.4 | |
| 16″ | 650 | 57.2 | 483 | 411.2 | 121 | 20 | 34.29 | 571.5 | |
| 18″ | 710 | 60.4 | 533 | 462.3 | 130 | 24 | 34.29 | 628.6 | |
| 20″ | 775 | 63.5 | 587 | 514.4 | 140 | 24 | 34.29 | 685.8 | |
| 24″ | 915 | 69.9 | 702 | 616.0 | 152 | 24 | 41.27 | 812.8 | |
Note: The dimensions are in millimeters
Class 600 Lap Joint Flange Dimensions
| DRILLING | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NOMINAL BORE | DIA. (D) |
THICK. (E) |
DIA. (B) |
DIA. (A) |
HEIGHT (H) |
NBR | HOLES | DIA. (C) |
|
| 1/2″ | 95 | 14.3 | 38 | 23.6 | 22 | 4 | 15.87 | 66.7 | |
| 3/4″ | 115 | 15.9 | 48 | 29.0 | 25 | 4 | 19.05 | 82.6 | |
| 1″ | 125 | 17.5 | 54 | 35.8 | 27 | 4 | 19.05 | 88.9 | |
| 1 1/4″ | 135 | 20.7 | 64 | 44.4 | 29 | 4 | 19.05 | 98.4 | |
| 1 1/2″ | 155 | 22.3 | 70 | 50.6 | 32 | 4 | 22.22 | 114.3 | |
| 2″ | 165 | 25.4 | 84 | 63.5 | 37 | 8 | 19.05 | 127.0 | |
| 2 1/2″ | 190 | 28.6 | 100 | 76.2 | 41 | 8 | 22.22 | 149.2 | |
| 3″ | 210 | 31.8 | 117 | 92.2 | 46 | 8 | 22.22 | 168.3 | |
| 3 1/2″ | 230 | 35.0 | 133 | 104.9 | 49 | 8 | 25.40 | 184.2 | |
| 4″ | 275 | 38.1 | 152 | 117.6 | 54 | 8 | 25.40 | 215.9 | |
| 5″ | 330 | 44.5 | 189 | 144.4 | 60 | 8 | 28.57 | 266.7 | |
| 6″ | 355 | 47.7 | 222 | 171.4 | 67 | 12 | 28.57 | 292.1 | |
| 8″ | 420 | 55.6 | 273 | 222.2 | 76 | 12 | 31.75 | 349.2 | |
| 10″ | 510 | 63.5 | 343 | 276.2 | 111 | 16 | 34.92 | 431.8 | |
| 12″ | 560 | 66.7 | 400 | 328.6 | 117 | 20 | 34.92 | 489.0 | |
| 14″ | 605 | 69.9 | 432 | 360.4 | 127 | 20 | 38.10 | 527.0 | |
| 16″ | 685 | 76.2 | 495 | 411.2 | 140 | 20 | 41.27 | 603.2 | |
| 18″ | 745 | 82.6 | 546 | 462.0 | 152 | 20 | 44.45 | 6654.0 | |
| 20″ | 815 | 88.9 | 610 | 512.8 | 165 | 24 | 44.45 | 723.9 | |
| 24″ | 940 | 101.6 | 718 | 614.4 | 184 | 24 | 50.80 | 838.2 | |
Note: The dimensions are in millimeters
Class 900 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 120 | 38 | 32 | 22.9 | 82.6 | 22.3 | 3 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
| 3/4 | 20 | 130 | 44 | 35 | 28.2 | 88.9 | 25.4 | 3 | 4 | 3/4 | 115 | 7/8 | M20 | 2.3 |
| 1 | 25 | 150 | 52 | 41 | 34.9 | 101.6 | 28.6 | 3 | 4 | 7/8 | 125 | 1 | M24 | 3.6 |
| 1 1/4 | 32 | 160 | 64 | 41 | 43.7 | 111.1 | 28.6 | 5 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
| 1 1/2 | 40 | 180 | 70 | 44 | 50 | 123.8 | 31.8 | 6 | 4 | 1 | 140 | 1 1/8 | M27 | 5.5 |
| 2 | 50 | 215 | 105 | 57 | 62.5 | 165.1 | 38.1 | 8 | 8 | 7/8 | 145 | 1 | M24 | 11.5 |
| 2 1/2 | 65 | 245 | 124 | 64 | 75.4 | 190.5 | 41.3 | 8 | 8 | 1 | 160 | 1 1/8 | M27 | 16.5 |
| 3 | 80 | 240 | 127 | 54 | 91.4 | 190.5 | 38.1 | 10 | 8 | 7/8 | 145 | 1 | M24 | 12 |
| 4 | 100 | 290 | 159 | 70 | 116.8 | 235 | 44.5 | 11 | 8 | 1 1/8 | 170 | 1 1/4 | M30 | 24 |
| 5 | 125 | 350 | 190 | 79 | 144.4 | 279.4 | 50.8 | 11 | 8 | 1 1/4 | 190 | 1 3/8 | M33 | 38 |
| 6 | 150 | 380 | 235 | 86 | 171.4 | 317.5 | 55.6 | 13 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 50 |
| 8 | 200 | 470 | 298 | 114 | 222.2 | 393.7 | 63.5 | 13 | 12 | 1 3/8 | 220 | 1 1/2 | M36 | 78 |
| 10 | 250 | 545 | 368 | 127 | 277.4 | 469.9 | 69.9 | 13 | 16 | 1 3/8 | 235 | 1 1/2 | M36 | 112 |
| 12 | 300 | 610 | 419 | 143 | 328.2 | 533.4 | 79.4 | 13 | 20 | 1 3/8 | 255 | 1 1/2 | M36 | 148 |
| 14 | 350 | 640 | 451 | 156 | 360.2 | 558.8 | 85.8 | 13 | 20 | 1 1/2 | 275 | 1 5/8 | M39 | 182 |
| 16 | 400 | 705 | 508 | 165 | 411.2 | 616 | 88.9 | 13 | 20 | 1 5/8 | 285 | 1 3/4 | M42 | 193 |
| 18 | 450 | 785 | 565 | 190 | 462.3 | 685.8 | 101.6 | 13 | 20 | 1 7/8 | 325 | 2 | M48 | 258 |
| 20 | 500 | 855 | 622 | 210 | 514.4 | 749.3 | 108 | 13 | 20 | 2 | 350 | 2 1/8 | M52 | 317 |
| 24 | 600 | 1040 | 749 | 267 | 616 | 901.7 | 139.7 | 13 | 20 | 2 1/2 | 440 | 2 5/8 | M64 | 608 |
Class 1500 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 120 | 38 | 32 | 22.9 | 82.6 | 22.3 | 3 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
| 3/4 | 20 | 130 | 44 | 35 | 28.2 | 88.9 | 25.4 | 3 | 4 | 3/4 | 115 | 7/8 | M20 | 2.3 |
| 1 | 25 | 150 | 52 | 41 | 34.9 | 101.6 | 28.6 | 3 | 4 | 7/8 | 125 | 1 | M24 | 3.7 |
| 1 1/4 | 32 | 160 | 64 | 41 | 43.7 | 111.1 | 28.6 | 5 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
| 1 1/2 | 40 | 180 | 70 | 44 | 50 | 123.8 | 31.8 | 6 | 4 | 1 | 140 | 1 1/8 | M27 | 5.5 |
| 2 | 50 | 215 | 105 | 57 | 62.5 | 165.1 | 38.1 | 8 | 8 | 7/8 | 145 | 1 | M24 | 9.8 |
| 2 1/2 | 65 | 245 | 124 | 64 | 75.4 | 190.5 | 41.3 | 8 | 8 | 1 | 160 | 1 1/8 | M27 | 16.4 |
| 3 | 80 | 265 | 133 | 73 | 91.4 | 203.2 | 47.7 | 10 | 8 | 1 1/8 | 180 | 1 1/4 | M30 | 21.8 |
| 4 | 100 | 310 | 162 | 90 | 116.8 | 241.3 | 54 | 11 | 8 | 1 1/4 | 195 | 1 3/8 | M33 | 33 |
| 5 | 125 | 375 | 197 | 105 | 144.4 | 292.1 | 73.1 | 11 | 8 | 1 1/2 | 250 | 1 5/8 | M39 | 59 |
| 6 | 150 | 395 | 229 | 119 | 171.4 | 317.5 | 82.6 | 13 | 12 | 1 3/8 | 260 | 1 1/2 | M36 | 75 |
| 8 | 200 | 485 | 292 | 143 | 222.2 | 393.7 | 92.1 | 13 | 12 | 1 5/8 | 290 | 1 3/4 | M42 | 118 |
| 10 | 250 | 585 | 368 | 178 | 277.4 | 482.6 | 108 | 13 | 12 | 1 7/8 | 335 | 2 | M48 | 198 |
| 12 | 300 | 675 | 451 | 219 | 328.2 | 571.5 | 123.9 | 13 | 16 | 2 | 375 | 2 1/8 | M52 | 264 |
| 14 | 350 | 750 | 495 | 241 | 360.2 | 635 | 133.4 | 13 | 16 | 2 1/4 | 405 | 2 3/8 | M56 | 341 |
| 16 | 400 | 825 | 552 | 260 | 411.2 | 704.8 | 146.1 | 13 | 16 | 2 1/2 | 445 | 2 5/8 | M64 | 454 |
| 18 | 450 | 915 | 597 | 276 | 462.3 | 774.7 | 162 | 13 | 16 | 2 3/4 | 495 | 2 7/8 | M72 | 590 |
| 20 | 500 | 985 | 641 | 292 | 514.4 | 831.8 | 177.8 | 13 | 16 | 3 | 540 | 3 1/8 | M76 | 792 |
| 24 | 600 | 1170 | 762 | 330 | 616 | 990.6 | 203.2 | 13 | 16 | 3 1/2 | 615 | 3 5/8 | M90 | 1248 |
Class 2500 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 135 | 43 | 40 | 22.9 | 88.9 | 30.2 | 3 | 4 | 3/4 | 120 | 7/8 | M20 | 3.2 |
| 3/4 | 20 | 140 | 51 | 43 | 28.2 | 95.2 | 31.8 | 3 | 4 | 3/4 | 125 | 7/8 | M20 | 3.7 |
| 1 | 25 | 160 | 57 | 48 | 34.9 | 108 | 35 | 3 | 4 | 7/8 | 140 | 1 | M24 | 5 |
| 1 1/4 | 32 | 185 | 73 | 52 | 43.7 | 130.2 | 38.1 | 5 | 4 | 1 | 150 | 1 1/8 | M27 | 7.5 |
| 1 1/2 | 40 | 205 | 79 | 60 | 50 | 146 | 44.5 | 6 | 4 | 1 1/8 | 170 | 1 1/4 | M30 | 10 |
| 2 | 50 | 235 | 95 | 70 | 62.5 | 171.4 | 50.9 | 8 | 8 | 1 | 180 | 1 1/8 | M27 | 17.5 |
| 2 1/2 | 65 | 265 | 114 | 79 | 75.4 | 196.8 | 57.2 | 8 | 8 | 1 1/8 | 195 | 1 1/4 | M30 | 23 |
| 3 | 80 | 305 | 133 | 92 | 91.4 | 228.6 | 66.7 | 10 | 8 | 1 1/4 | 220 | 1 3/8 | M33 | 37.8 |
| 4 | 100 | 355 | 165 | 108 | 116.8 | 273 | 76.2 | 11 | 8 | 1 1/2 | 255 | 1 5/8 | M39 | 57 |
| 5 | 125 | 420 | 203 | 130 | 144.4 | 323.8 | 92.1 | 11 | 8 | 1 3/4 | 300 | 1 7/8 | M45 | 95 |
| 6 | 150 | 485 | 235 | 152 | 171.4 | 368.3 | 108 | 13 | 8 | 2 | 345 | 2 1/8 | M52 | 148 |
| 8 | 200 | 550 | 305 | 178 | 222.2 | 438.2 | 127 | 13 | 12 | 2 | 380 | 2 1/8 | M52 | 221 |
| 10 | 250 | 675 | 375 | 229 | 277.4 | 539.8 | 165.1 | 13 | 12 | 2 1/2 | 490 | 2 5/8 | M64 | 425 |
| 12 | 300 | 760 | 441 | 254 | 328.2 | 619.1 | 184.2 | 13 | 12 | 2 3/4 | 540 | 2 7/8 | M72 | 500 |
Types of ANSI B16.5 Lap Joint Flange
- loose flange en 1092-1
- ASME B16.5 lap joint flanges
- lapped flange asme b16.5
- lap joint reducing Flanges
- sae 3000 lap joint flanges
- copper lap joint flanges
- lap joint flanges class 300
- reducing lap joint flange
- lap joint orifice flange
- lap joint pipe flange
- lap joint raised face flange
- lap joint flat face flange
- lap joint blind flange
- lapped joint flange
- class 150 lap joint flange
- lap joint flange pn 16
- loose flange pn 16
- 1/2 lap joint flange
- 150# lap joint flange
- Aluminium lap joint flange
- 150 LB lap joint flange
- 300 LB lap joint flange
- lap joint RTJ flange
- reducing lap joint flange
- lap joint flange sch 80
- lapped flange joint
- stainless steel lap joint flange
- lap joint flange welding
- carbon steel lap joint flange
- class 600 lap joint flange
- class 900 lap joint flange
- ss lap joint flange
- 2 inch lap joint flange
- 2500# lap joint flange
- jis lap joint flange
- lap joint ring type joint flange
Lap Joint Flange Applications & Industries
Oil & Gas Industries
Gas Processing Industries
Food Processing Industries
Petrochemical Industries
Chemical Industries
Power Generation Industries
Sugar Industries
Fertilizers Industries
We are well-known prestigious Manufacturers, Exporters, and Suppliers of high quality ASME B16.5 Lap Joint Flange. We supply ASME B16.47 Loose Flange to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications. Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.
Ready Stock of Lap Joint Flange Export to
AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe
EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City
AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela
Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu
Please send us the complete details of Lapped Joint Flange requirement. We offer ANSI B16.5 Lap Joint Flange, and EN 1092-1 Lapped Flange which are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these Class 150#, 300#, 400#, 600#, 900#, 1500#, 2500#, Lap Joint Flange at our valuable customers end. Buy Table E Lap Joint Flange at a cheap price from us.
sales@metalfed.com | +91 9137898594 | Quotation Form | Reach Us
