Elbow Flange Supplier

Manufacturer of Stainless Steel Elbow Flange, Elbow Flanged Regular 90°, Elbow Flange Fittings, Flange Elbow Dimensions

Elbow Flange Suppliers in India

We as Metalfed Engineering are a prominent supplier, stockiest and manufacturer of Elbowflange, which has a low carbon content to prevent intergranular corrosion. Elbow Flanged Regular 90° is simply a general classifier, while it is the specification itself that reduces the steel to a very specific standard. The high chromium and nickel content along with silicon in this Stainless Steel Elbowflange provides oxidation resistance and good strength at both room and elevated temperatures. It is also used for general applications with moderately corrosive conditions.
Annealing of this Elbowflang Fitting requires heating in the range of 1038°C to 1149°C (1900°F to 2100°F) before rapid cooling. The mechanical properties and performance of this alloy depend on its composition and microstructure. Our Nickel Alloy Elbowflange offered is highly appreciated by our customers for its optimal strength and durability. This alloy is manufactured in the industry under the careful supervision of professionals and according to the guidelines of the production process. Titanium Alloy Elbowflange are also used to join dissimilar steels, mild steels to stainless steels, for buffer layers prior to hard-facing. Pure elements always react with the environment in these fittings, which is why some elements occur naturally in their pure form, and iron is no exception.

Worldwide Exporter of Elbow Steel Flange, SS Elbow Flange, Long Welding Elbow Flange, ANSI B16.5 Elbow Flange End, Elbow Flange Union, Elbow Pipe Flange, Elbow Swivel Flange in all Dimensions.

Table of Content

Some small parts made of this alloy, e.g. clamps and mounting feet are specially marked. Monel Alloy Elbowflange have a slightly different alloy composition and therefore slightly different physical properties. They are made by our experienced professionals using high quality steel and advanced technology.

Largest Stockholder of Brass Elbow Flange, A105 Carbon Steel Elbow Flange, Alloy Steel Elbow Flange, Elbow Flange Union, Elbow Square Flange, Elbow Reducer Flange, Elbow 4500 Flange at Best Prices.

SS Elbow Flange Specifications
Product Name: Elbow Flange
Size Chart: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Dimensions: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Rating ANSI: Class 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN: PN6 PN10 PN16 PN25 PN40 PN64 / 6Bar 10Bar 16Bar 25Bar 40Bar
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type/Flange Face Type: RF-Rasied Face, FF-Flat Face, LMF-Large Male-Female, LJF-Lap-Joint Face, SMF-Small Male-Female, Small Tongue, Large Tongue & Groove, Groove
Custom Flange/Special Design: As per your drawing
Standards: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, ASME/ANSI B16.5/16.36/16.47A/16.47B, GOST Flange, MSS SP44, ISO70051, BS1560-3.1, JISB2220, API7S-43, API7S-15, API605, EN1092
Flange Test: Direct-reading Spectrograph, X-ray detector, Hydrostatic testing machine, UI trasonic flaw detector, Magnetic particle detector
Flanges Equipment: Press machine, Pushing Machine, Bending machine, electric bevelling machine, Sand-blasting machine, etc
Manufacturers of: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British Standard (BS)
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ASTM A182 Threaded Reducing Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Test Certificates: Third Party Inspection Report, 100% Radiography Test Report, Raw Materials Certificate, EN 10204/3.1B, etc.
Material Test Certificates (MTC): As per EN 10204 3.1 and EN 10204 3.2, TC certifying NACE MR0103, NACE MR0175
Uses & Applications: Petrochemicals and acids, Nuclear Power, Heavy oil refineries, Bitumen upgraders, Offshore, Piping Projects etc.
Export Network: Ireland, Oman, Dubai, Indonesia, Egypt, Singapore, Saudi & Arabia, Iran, Ukraine, Canada, USA, Brazil, Spain, Thailand, Korea, India, Peru, etc

Elbow Steel Flange Materials and Grades
Duplex Steel Elbow Flange: ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Super Duplex Elbow Flange: ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel Elbow Flange: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Nickel Alloys Elbow Flange: ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Alloys Elbow Flange: Alloy 20, Alloy C, Alloy C276, Alloy B2
Carbon Steel Elbow Flange: ASTM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52
Copper Alloys Elbow Flange: ASTM SB 61, SB62, SB151, SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Low Temperature Steel Elbow Flange: ASTM A350 LF2, LF3, LF6
High Yield Elbow Flange: ASTM A694 F42, F52, F60, F65, F70
Alloy Steel Elbow Flange: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Titanium Elbow Flange: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Brass Elbow Flange: 2604 / 3602 / H59 / H62 / etc.
Aluminium Elbow Flange: 2017 / 5052 / 6063 / 6061 / 7075 etc.
Alloy 20 Elbow Flange: ASME SB462 / ASTM B462, Carpenter® 20 Alloy, Alloy 20Cb-3
Nimonic Elbow Flange: Nimonic 80A, Nimonic 75, Nimonic 90
254 SMO Elbow Flange: ASME SA182 / ASTM A182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Other Elbow Flange Material: Tin bronze, Alumunum bronze, Lead bronze

Elbow Flange Dimensions

Elbow Flange Fittings Dimensions

Elbow Flange and General Dimensions (inches)
NPS Flanges General
Dia. of
Flange		 Min. Thickness
of Flange		 Inside Dia.
of Fittings		 Wall
Thickness
1 4.25 0.44 1.00 0.31
1 1/4 4.62 0.50 1.25 0.31
1 1/2 5.00 0.56 1.50 0.31
2 6.00 0.62 2.00 0.31
2 1/2 7.00 0.69 2.50 0.31
3 7.50 0.75 3.00 0.38
3 1/2 8.50 0.81 3.50 0.44
4 9.00 0.94 4.00 0.50
5 10.00 0.94 5.00 0.50
6 11.00 1.00 6.00 0.56
8 13.50 1.12 8.00 0.62
10 16.00 1.19 10.00 0.75
12 19.00 1.25 12.00 0.81
14 21.00 1.38 14.00 0.88
16 23.50 1.44 16.00 1.00
18 25.00 1.56 18.00 1.06
20 27.50 1.69 20.00 1.12
24 32.00 1.88 24.00 1.25
30 38.75 2.12 30.00 1.44
36 46.00 2.38 36.00 1.62
42 53.00 2.62 42.00 1.81
48 59.50 2.75 48.00 2.00

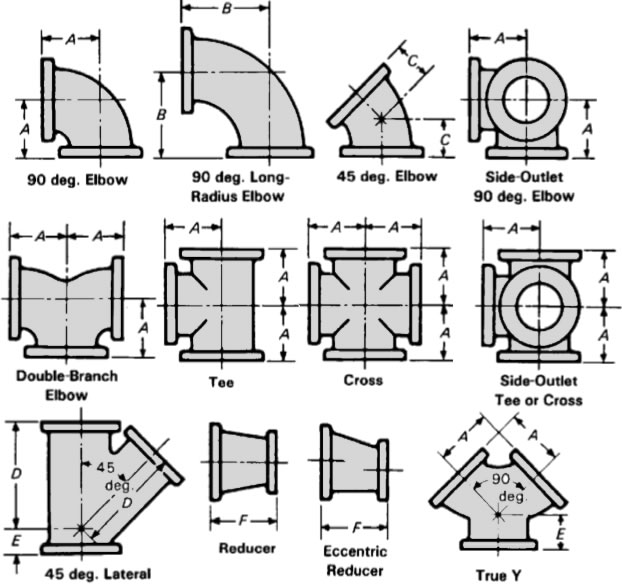

Elbow Flange Straight Fittings Dimensions (inches)
NPS A B C D E F
1 3.50 5.00 1.75 5.75 1.75 –
1 1/4 3.75 5.50 2.00 6.25 1.75 –
1 1/2 4.00 6.00 2.25 7.00 2.00 –
2 4.50 6.50 2.50 8.00 2.50 5.0
2 1/2 5.00 7.00 3.00 9.50 2.50 5.5
3 5.50 7.75 3.00 10.00 3.00 6.0
3 1/2 6.00 8.50 3.50 11.50 3.00 6.5
4 6.50 9.00 4.00 12.00 3.00 7.0
5 7.50 10.25 4.50 13.50 3.50 8.0
6 8.00 11.50 5.00 14.50 3.50 9.0
8 9.00 14.00 5.50 17.50 4.50 11.0
10 11.00 16.50 6.50 20.50 5.00 12.0
12 12.00 19.00 7.50 24.50 5.50 14.0
14 14.00 21.50 7.50 27.00 6.00 16.0
16 15.00 24.00 8.00 30.00 6.50 18.0
18 16.50 26.50 8.50 32.00 7.00 19.0
20 18.00 29.00 9.50 35.00 8.00 20.0
24 22.00 34.00 11.00 40.50 9.00 24.0
30 25.00 41.50 15.00 49.00 10.00 30.0
36 28.00 49.00 18.00 – – 36.0
42 31.00 56.50 21.00 – – 42.0
48 34.00 64.00 24.00 – – 48.0

Notes:

NPS – Nominal Pipe Size,
A – Center to Face 90 deg. Elbow, Tees, Crosses, True Y, and Double-Branch Elbow,
B- Center to-Face 90 deg. Long Radius Elbow,
C – Center to Face 45 deg. elbow
D – Center to Face Lateral D
E – Short Center to Face True Y and Lateral E
F – Face to Face Reducer

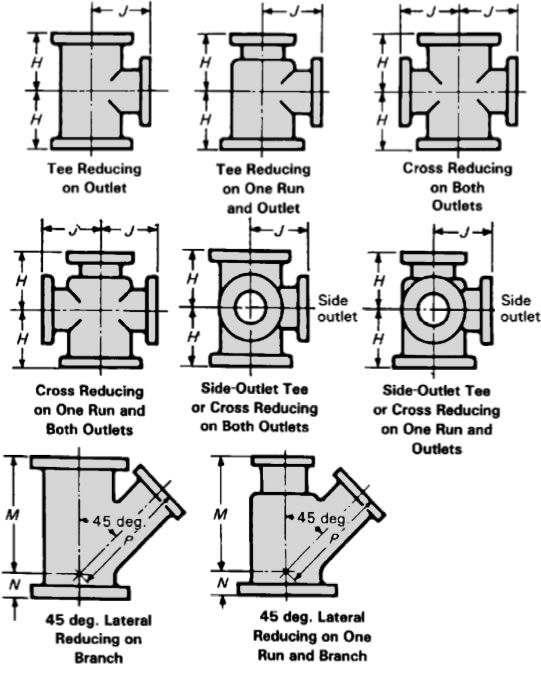

Elbow Reducing Flange Fiting Dimesions

Elbow Reducing Flange Fittings Dimensions

Reducing Fittings Dimensions (inches)
NPS Reducing Fittings
Tees and Crosses Laterals
NPS
Size
of
Outlet
and
Smaller		 H J NPS
Size
of
Branch
and
Smaller		 M N P
1 All reducing tees and crossed NPS 16 and smaller shall have the same center to face dimensions as straight size fittings, corresponding to size of the largest opening. All reducing leterals NPS 16 and smaller shall have the same center to face dimensions as straight size fittings, corresponding to size of the largest opening.
1 1/4
1 1/2
2
2 1/2
3
3 1/2
4
5
6
8
10
12
14
16
18 12.0 13.0 15.5 8 25.0 1.0 27.5
20 14.0 14.0 17.0 10 27.0 1.0 29.5
24 16.0 15.0 19.0 12 31.5 0.5 34.5
30 20.0 18.0 23.0 14 39.0 0.0 42.0
36 24.0 20.0 26.0 – – – –
42 24.0 23.0 30.0 – – – –
48 30.0 26.0 34.0 – – – –

Notes:

NPS – Nominal Pipe Size,
H – Center to Face Run
J- Center to Face Outlet or Side Outlet
M – Center to Face Run
N – Center to Face Run
P – Center to Face Branch
