Manufacturer of ASME 16.11 Socket Weld Reducing Tee, Socket Weld Lateral Tee Exporter, Socket Weld Tee Dimensions
Metalfed Engineering is distinguished supplier and exporter of ASME B16.11 Socket Weld Tee. We are also Stockiest of SW Reducing Tee and Socket Weld Equal Tee in various sizes, shapes, and dimensions as per ASME B16.11 standard covers pressure-temperature ratings, tolerances, dimensions, marking, and material requirements for forged alloy and carbon steel. Check Reducing Tee Socket Weld Dimensions as per application.

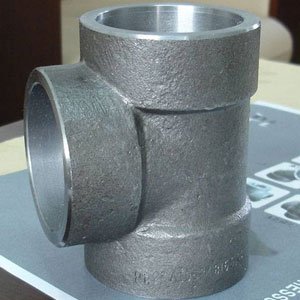

ASME B16.11 Socket Weld Equal Tee is used to the systems requiring exceptional strength of welded joints. Forged Steel Socket Weld Tee can be divided into straight or equal tee and reducing tee as per run pipe and branch diameter. We are known as specialist in ASME B16.11 / BS3799 socket weld tee fittings, and supply different size, grades, specification, thickness as client need.
We have reputed name as Socket Weld Lateral Tee Suppliers in India. We are exporting these Stainless Steel Socket Weld Tee which manufactured by using the high quality of raw materials after well tested and quality assured. These Class 3000 Socket Weld Tee manufactured under the supervision of highly qualified and skilled professionals. We consider our client’s needs and focus on offering them efficient and accurate Socket Weld Pipe Tee at best price.
Get Socket Weld Unequal Tee Dimensions, Socket Weld Lateral Tee, Stainless Steel Socket Weld Tee, Socket Weld Cross Tee, Socket Weld Pipe Tee, Socket Weld Tee Fittings Price in India.
We are supplying Socket Weld Tee which mostly used for lines conveying flammable, expensive material or toxic where no leakage can be permitted, and for steam 300 to 600 PSI. We have independent huge stock of Socket Weld Lateral Tee, Socket Weld Cross Tee. We manufacture 6000# Socket Weld Reducing Tee in accordance with the national and international quality standards and offerat best prices to our valuable clients.
Before the packaging and delivery of this Socket Weld Tee, We conduct so many destructive and non-destructive quality check tests. Contact us to get Socket Weld Tee Price in India.
Reputed Socket Weld Tee Supplier in Mumbai, Reducing Tee Socket Weld , Carbon Steel Socket Weld Tee, 3000# Socket Weld Reducing Tee, 3/4 Socket Weld Tee Stockholder in India.
Socket Weld Tee Specifications
Dimension
ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size
1/2″NB TO 4″NB IN
Form
Socket Weld Equal Tee, Socket Weld Reducing Tee, Socket Weld Unequal Tee.
Class
3000 LBS, 6000 LBS
Type
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
ASME B16.11 Socket Weld Tee Dimensions, 3000# Socket Weld Reducing Tee Dimensions
ASME B16.11 Socket Weld Unequal Tee Dimensions
| NPS | Socket Bore | Depth Socket | Bore dia |
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
| 1/2 | 4.65 4.10 |
3.75 | 15.5 |
| 3/4 | 4.90 4.25 |
3.90 | 19.5 |
| 1 | 5.70 5.00 |
4.55 | 22 |
| 1.1/4 | 6.05 5.30 |
4.85 | 27 |
| 1.1/2 | 6.35 5.55 |
5.10 | 32 |
| 2 | 6.95 6.05 |
5.55 | 38 |
| 2.1/2 | 8.75 7.65 |
7.00 | 41.5 |
| 3 | 9.50 8.30 |
7.60 | 57.5 |
| 4 | 10.70 9.35 |
8.55 | 66.5 |
Class 6000 Socket Weld Tee Dimensions NPS 1/2 to 2
| NPS | Socket Bore | Depth Socket | Bore dia |
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
| 1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
| 1½ | 48.90 48.65 |
13 | 34.7 33.2 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
| NPS | Socket WT |
Body WT |
Center to bottom of socket |
| C | G | A | |
| 1/2 | 5.95 5.20 |
4.80 | 19.5 |
| 3/4 | 6.95 6.05 |
5.55 | 22.5 |
| 1 | 7.90 6.95 |
6.35 | 27 |
| 1¼ | 7.90 6.95 |
6.35 | 32 |
| 1½ | 8.90 7.80 |
7.15 | 38 |
| 2 | 10.90 9.50 |
8.75 | 41 |
Socket Weld Tee Weight Chart
| Nominal Size | Approximate Weight/kg | |||
| DN | NPS | 3000 LB | 6000 LB | 9000 LB |
| 6 | 1/8 | 0.13 | 0.22 | |
| 8 | 1/4 | 0.13 | 0.22 | |
| 10 | 3/8 | 0.16 | 0.45 | |
| 15 | 1/2 | 0.35 | 0.55 | 1.15 |
| 20 | 3/4 | 0.4 | 0.9 | 1.8 |
| 25 | 1 | 0.66 | 1.46 | 2.25 |
| 32 | 1 1/4 | 1 | 1.9 | 3.95 |
| 40 | 1 1/2 | 1.4 | 3.4 | 4.87 |
| 50 | 2 | 2.2 | 3.7 | 8.89 |
| 65 | 2 1/2 | 4 | 7.2 | |
| 80 | 3 | 6.15 | 10.7 | |
| 100 | 4 | 14.3 | ||
ASME B16.11 Socket Weld Tee Ready Stock
- Socket Weld Tee Fittings
- Socket Weld Reducing Tee
- Socket Weld Equal Tee
- Stainless Steel Socket Weld Reducing Tee
- 1 Socket Weld Tee
- Stainless Steel Socket Weld Tee
- Socket Weld Unequal Tee
- ASME B16.11 Socket Weld Tee
- Socket Weld Lateral Tee
- Reducing Tee Socket Weld
- 3000# Socket Weld Tee
- ASME B16.11 Socket Weld Reducing Tee
- Carbon Steel Socket Weld Tee
- 2 inch Socket Weld Tee
- 3/4 Socket Weld Tee
- Steel Socket Weld Tee
- Reducing Tee Socket Weld Class 3000
- Socket Weld Cross Tee
- 6000# Socket Weld Reducing Tee
- Forged Steel Socket Weld Reducing Tee
- Socket Weld Pipe Tee
- 3 Inch Socket Weld Tee
ASME B 16.11 Socket Weld Tee – Applications & Industries
Oil & Gas Industries
Gas Processing Industries
Food Processing Industries
Petrochemical Industries
Chemical Industries
Power Generation Industries
Sugar Industries
Fertilizers Industries
We supply Socket Weld Reducing Tee to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications.Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.We are reputed exporter and supplier of high quality socket weld equal tee, socket weld unequal tee and socket weld lateral tee..
Ready Stock of Socket Weld Tee Fittings Export to
AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe
EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City
AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela
Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu
Please send us the complete details of Socket Weld Tee requirement.We are offering Socket Weld Lateral Tee, Socket Weld Equal Tee and Socket Weld Reducing Tee which are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these Socket Weld Tee at our valuable customers end. Buy Socket Weld Reducing Tee at lowest price from us.
